100 osram opto p/n lw Y8SG micro sideled white led

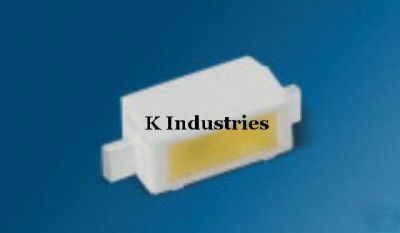

100 OSRAM Opto P/N LW Y8SG Micro Sideled White LED
§ Package: white SMT package, colored diffused silicone resin
§ Feature of the device: long life time due to enhanced resin material ideal for backlighting and coupling in light guides
§ Color coordinates: x = 0.3, y = 0.28 acc. to CIE 1931 (white)
§ color temperature Typ.: 8200 K
§ Color reproduction index: 80
§ Viewing angle at 50 % IV: 120°, (Lambertian Emitter)
§ Typ. efficiency: 26.0 lm/W white
§ Grouping parameter: luminous intensity color coordinates forward voltage
§ Soldering Technique: IR reflow soldering TTW soldering
§ ESD-withstand voltage: up to 2 kV acc. to JESD22-A114-B
* backlighting (LCD, cellular phones, switches, keys, displays, illuminated advertising, general lighting)
* optimized coupling into light guides
* signal and symbol luminaire
* special illumination (phones, personal computers, handhelds)
These are very powerful tiny LED’s You get 100 of them. I soldered one to some wire to test it. At 2V DC it lit up, at 3.2V DC it was so bright it was hard to look at.
* Contact us for return instructions.
* Please report problems within 3-days of receiving merchandise. Items must be returned within 7-days.
* Please allow time to respond to all e-mails due to the volume we receive.
* If you do not receive a return message, please check your SPAM/BULK folder.
* Wait until all items have completed.
