Extech handheld multiscope oscilloscope multimeter

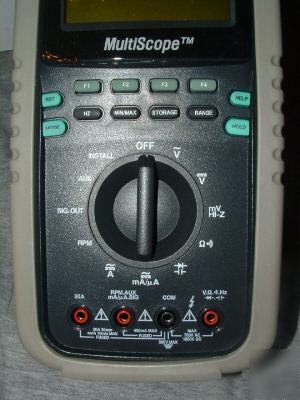

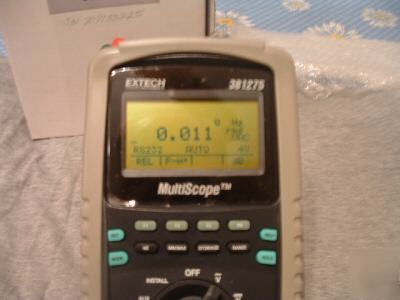

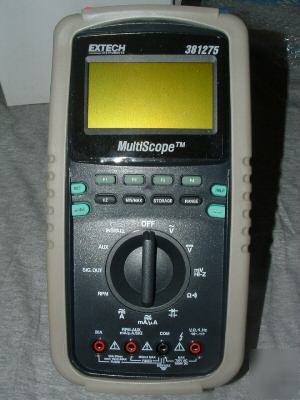

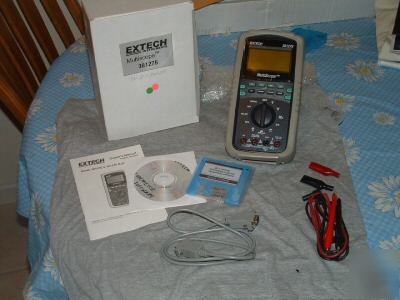

Extech 381275 100 kHz Multiscope. The 381275 is a graphical storage oscilloscope and True RMS multimeter with PC interface and software in a complete package. The 381275 is the best scopemeter on the market for total portability and economy.
* Oscilloscope Bandwidth: DC to 100 kHz with a sample rate of 1 Million Samples/sec
* Oscilloscope Display: 128 x 64 pixel graphic LCD (View area: 2.8x1.5")
* Oscilloscope graphical functions:
* Single channel, volts/division (150 mV to 400 V), Amps/division (15 A), 500 ns Glitch Capture, Pre/Post-Trigger (-4 div./+10 div.)
* MultiMeter Display: 3-3/4 digit (4000 count) LCD with Bargraph and Data Hold
* Resistance, Capacitance, Frequency, dB, Duty Cycle, Pulse Width, Period
* Diode and Continuity tests
* Built-in RS-232 PC interface
* Includes Windows® 95/98 compatible software and RS-232 cable
* Record and Recall MIN/MAX/AVG readings with time stamping
* Generator output provides 10 Hz to 20 kHz TTL level output
* Store and recall 15 waveforms plus setup
* Graphical HELP screens explain functions
* Over-range indication and Auto power off
