New log splitter valve (brand )

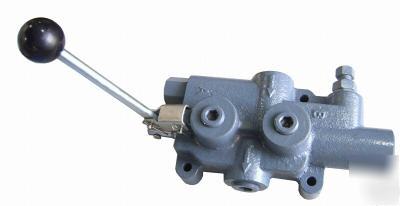

Log Splitter Valve (Brand New)
* 3000 series manually operated directional valve is a direct type directional valve. It can be used to change the direction of hydraulic oil lines, allowing the spool to move in axial direction by adjusting the handle. It adopts ball positioner or spring as restoring device. Ideal for log splitter applications. Available with 3/4"PTF work ports for higher flow applications
* The monoblock casting body of high tensile strength ductile iron
* Hydraulically balanced, hard chrome plated spool
* In neutral position, both work ports blocked, pump unloaded to tank
* Pressure rating: Maximum design and text pressure: 2750PSI
* Maximum Operating Temperature: 180º F (82.2º C)
* Filtration Required (min): 10 micrometre
* Maximum Tank Pressure: 500PSI
* Relief Valve Setting: 2250PSI (All relief are set at 3gpm and 120º F)
* Detent Release Pressure: 1400PSI
* In/out port size : 3/4" NPTF
* For use with up to 5in. cylinders
Please contact us for quantity pricing.
24. Detent Adjusting Cartridge
A. Pressure Release Detent Adjusting Screw
