New economical portable composite sampler-
BRAND NEW with ONE YEAR WARRANTY!!

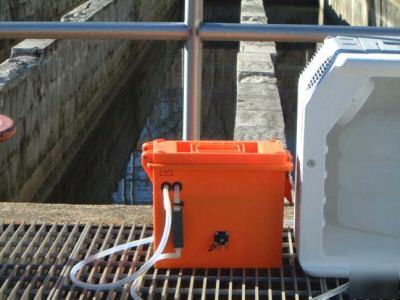

ï‚· Portable The PCS-100A weighs just 14 pounds including battery. This assures easier access to remote sampling sites.
ï‚· Easy To Configure and Use Three simple controls make setup quick and easy
ï‚· Rugged and Reliable Control electronics feature exceptional reliability and low power consumption. Non-volatile memory requires no backup battery.
ï‚· Dependable, Repeatable Sample volume is measured at the pump head, eliminating time-consuming calibration tables.
ï‚· Economical The most affordable/durable sampler available in the market
Dimensions: 14.75"L x 8.0"W x 11.5"H
Operating Temperature Range: 33-100oF (1-38oC)
Enclosure:Weatherproof Polypropylene Meets NEMA 4X and 6 requirements for weather proofing
Sample Lift Limit: Appoximately 30 ft. vertical (24"Hg)
Program Modes: Time based and external, (i.e. flow proportional)
Sampling Mode: Uniform time based
Sample Distribution: Single container
Sample Frequency: 8-125 samples/day adjustable System
Control Unit Enclosure:Purge: Automatic air purge after every cycle. Adjustable for various lift tubing lengths
Sample Volume: 20-300 ml. adjustable Sample Volume Repeatablilty +/ - 10 ml. typical
Suction Tubing Length: Range 3-40 ft. 1/4" i.d. vinyl

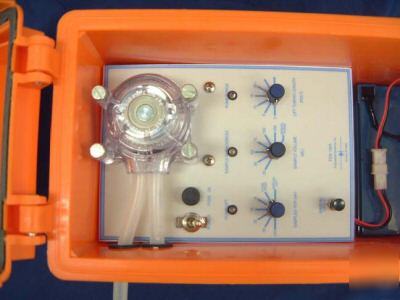

Pump:The three roller peristaltic pump is fully enclosed and is easily accessible for tubing changes
Power Requirements: 12 VDC battery or AC adapter Battery 7.0 aH sealed gell cell, 12 volt battery. Allows for easy recharging and long life
1. POWER SWITCH The sampler will initiate a short lift/purge self test when power is first applied, then begin timing for the next sample lift.
2. STATUS INDICATORS These three light emitting diodes (LEDs) display the current mode of the sampling program. (e.g. PUMP LIFT, SAMPLE IN PROGRESS or PUMP PURGE)
3. SAMPLES PER DAY This selector switch determines the number of samples per 24-hour period the sampler will take, ranging from 125 to 8. Two additional settings are provided. Select FLOW PROP. for applications where the sampler is paced by an external flow meter. Selecting MANUAL LIFT will initiate a pump lift within 15 seconds. After the pump lift begins, leaving this selector in MANUAL LIFT will cause the pump to run continuously.
4. MANUAL CYCLE Depressing this pushbutton switch forces an immediate sample lift/pump cycle. sample volume will be determined by the position of SAMPLE VOLUME selector. At the completion of a manual cycle, timing for next sample will be determined by SAMPLES PER DAY selector.
5. FUSE Protects the electronic circuits from damage caused by any over-current condition. Replaced with a 3A fuse.
6. LIFT TUBING LENGTH Determines the duration of the pump purge cycle. Adjusting this selection to the approximate length of the lift tubing will optimize timing of the purge cycle, and conserve battery power.
7. SAMPLE VOLUME Selects the volume in milliliters to be delivered to the sample container at each pump lift sequence. An additional selection, MANUAL PURGE, allows the operator to initiate a purge cycle at any time by simply rotating the selector to this position.
OPTIONS (pricing for options upon request)
***120 VAC/Battery convertible power supply
***Flow-proportional sampling: sample lift controlled by external flow meter
***TEFLON or NORPRENE pump tubing
***Stainless steel or titanium pump
***Additional sample rates and sample volumes
***Photovoltaic (solar) panel for extending remote operation
***Remote liquid level sensor (allows for exit tubing length of up to 20ft)
