New bd-CX23-750 multi-purpose lathe/milling machine

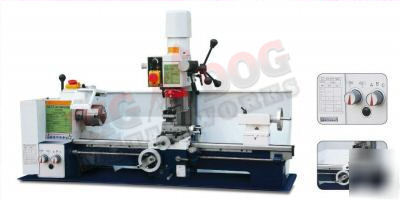

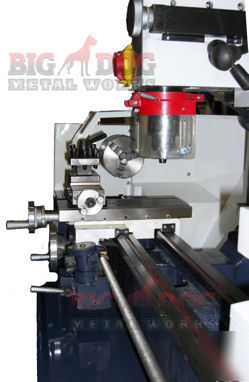

The BD-CX23-750 multi-purpose lathe/milling machine.
Absolutely brand new,unused,and in original packing case. Direct from manufacturer and fully guaranteed. Terrific value for money.
Ideal for the professional engineer or model maker alike.
This is a quality item, precision made, and the main specifications are:
* 750W Lathe Motor/ 550W for Milling
* Distance between centres : 750mm (30")
* Swing over bed : 230mm (9")
* Chuck diameter : 100mm (4")
* Spindle bore : 20mm (3/4")

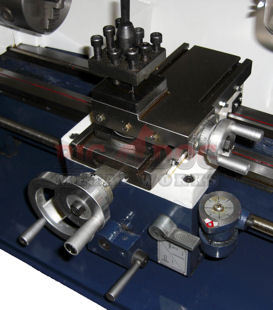

* Cross slide Travel : 125mm (5")
* Tool slide Travel : 48mm (1.9")
* Range of metric threads : 0.5mm - 3mm
* Range of imperial threads : 8-56tpi
* Spindle accuracy: 0.01mm (0.000394")
* Drilling Capacity : 16mm (.63")
* Face Milling Capacity : 30mm (1.2")
* End milling Capacity : 13mm (1/2")
* Spindle stroke for milling : 180mm
* Spindle Speed: - Lathe 100 - 1800rpm
* Spindle Speed - milling : 50-2500rpm.
* Accuracy inspection report included
