Pana vise wide opening head vise + #308 5LB base

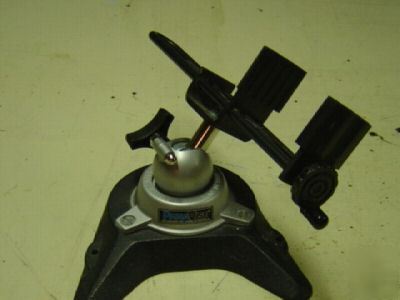

Pana Vise Wide Opening Head Vise w Model 308 5lb Base
Can be used for many Task. Electronics, Woodworking, Metal Working, Etc.
The work holding tool with EXPANDED capabilities, perfect for holding larger objects!
* Jaws open 6.25" (152.4 mm).
* Weighs 7.5lbs. Stays Put without Securing.
* Ribbed, neoprene jaw pads provide a sure grip and can hold and insulate PC boards and other larger objects; reverse the pads and the wide "V" holds delicate cylindrical objects such as coils and tuners.
* Jaw pads are 1.5" (38.1 mm) high and 1.875" (47.6 mm) wide. Throat depth: 2" (50.8 mm).
* Remove jaw pads from steel jaws when working with high heat.
* Black oxide coating reduces glare and promotes eye comfort.
* Overall head length is 11" (279.4 mm).
* Height (stem to top of jaw pads): 5.125" (130.2 mm). Weight: 1.6 lbs. (0.7 kg).
* The versatility of the PanaVise product line is evident in this combination: it's simply the Model 366 Wide Opening Head with the Model 308 Low Profile Base. This provides a wide gripping head with the full "tilt, turn and rotate" capabilities of the split ball (found in every 300 and 400 series base)
* The husky, cast iron Model 308 Base Mount weighs 5 lbs. (2.3 kg), is compact and features two extensions for extra stability.
Great for projects and Experiments
