Dc to 150 mhz X1:X10 oscilloscope probe w/ accessories

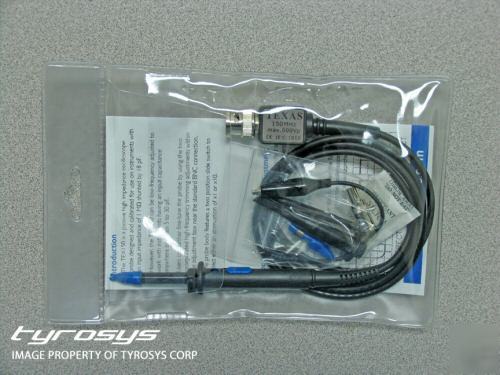

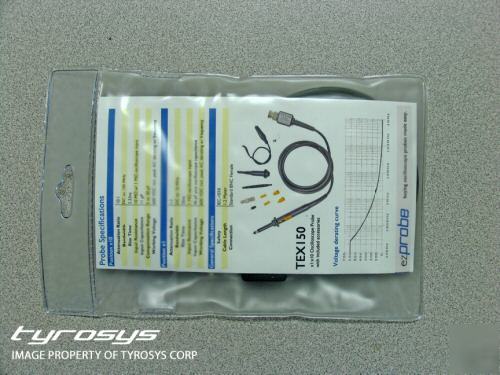

ezProbe TEX150 with included accessories!
DC to 150 MHz x1:x10 Switchable Oscilloscope Probe Product DescriptionUnit Specifications
10 MΩ w/ 1 MΩ oscilloscope input
600 VDC incl. peak AC derating w/ frequency
46 pF plus oscilloscope capacitance
600 VDC incl. peak AC derating w/ frequency
* New probe with accessories
* High and Low Frequency Trimming
* Works with DC up-to 150 MHz Oscilloscopes
* Replacable robust ez-Twist probe tip
* Backed by our 30-day guarantee
The TEX150 is a passive high impedance oscilloscope probe designed and calibrated for use on instruments with an input impedance of 1 MΩ shunted by 18 pF.
However, the TEX150 can be low-frequency adjusted to work with instruments having an input capacitance anywhere between 5 to 30 pF.
Users can further fine-tune the probe by using the two incorporated high-frequency trimming adjustments within the adjustment box near the standard BNC connection.
The probe body features a two position slide switch to select either an attenuation of x1 or x10.Key FeaturesThis is a new unit, sold with the following accessories:
Blue colored ID clips, tip adapters, & body switch
(QTY 1) DC to 150 MHz x1:x10 oscilloscope probe
(QTY 1) Trimming adjustment tool
(QTY 1) BNC to Probe-tip adapter
(QTY 2) Probe identifier clips
(QTY 1) Clear Plastic Storage Pouch
