Loewy 6500 ton hydraulic marform press, model h
MACHINE TOOLS * PRINTING SHOPS * PLASTICS INDUSTRY * TEXTILE INDUSTRY

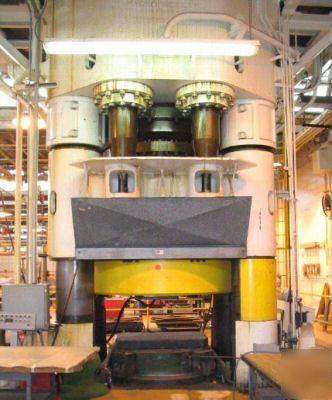

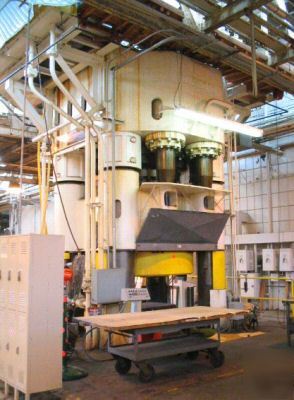

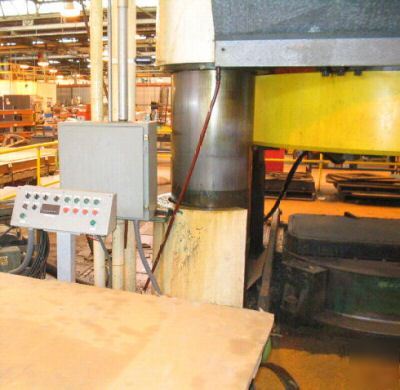

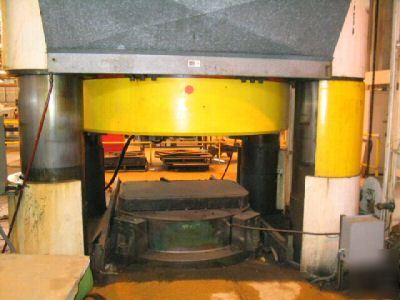

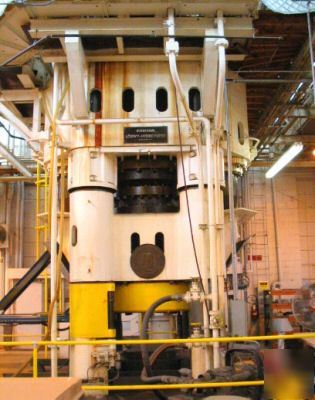

Loewy 6500 Ton Hydraulic Marform Press
Distance top of Bolster to Face of Slide Ram UP 56-1/2" (1435mm)
Working Pressure on Rubber Pad Max 10,000 PSI (690 bar)
Forming Area Max at 10,000 PSI 1269 Square Inch (8187 sq/cm)
Forming Area Max at 6000 PSI 36-7/8" x 58-7/8" x 16" thick
Overall Height of Press 46' aprox (14 Meter)
Height of Press Above Floor 32' (9.75 Meters)
Rapid Advance and Return 230"/min (584 cm/min
Pressing Speed 27-1/2"/min (70cm/min)
Stripping Speed 130"/min (330cm/min)
Hydraulic Working Pressure 2800 PSI (193 Bar)
Drawings can be mailed upon request
$475,000 Loaded, Maryland Plant
