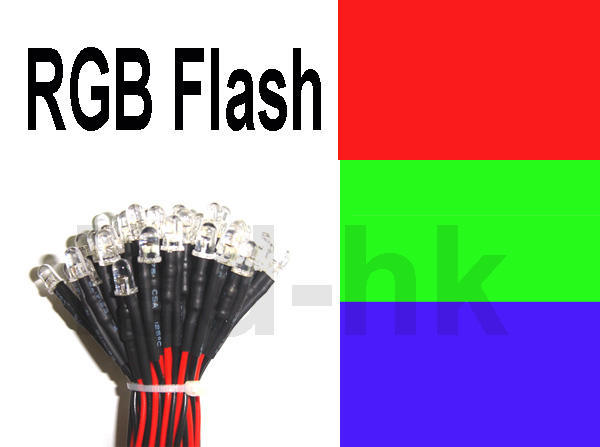

20X 5MM led lamp red green blue flash light wired 20CM
* Emitted Colour : RED GREEN BLUE FLASH
* Lens Colour : Water Clear
* Peak Wave Length (nm) : N/A
* Forward Voltage (V) : 12v
* Reverse Current (uA) : <=30
* Luminous Intensity Typ Iv (mcd) : Average in 5000
* Life Rating : 100,000 Hours
* Viewing Angle : 20 ~ 25 Degree
* Absolute Maximum Ratings (Ta=25°C)
* Max Power Dissipation : 80mw
* Max Continuous Forward Current : 30mA
* Max Peak Forward Current : 75mA
* Lead Soldering Temperature : 240°C (<5Sec)
* Operating Temperature Range : -25°C ~ +85°C
* Preservative Temperature Range : -30°C ~ +100°C
