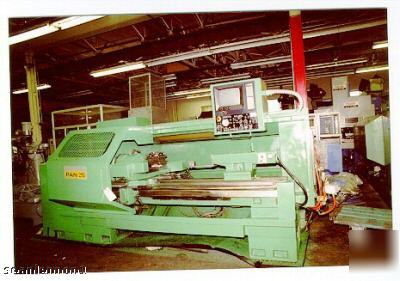

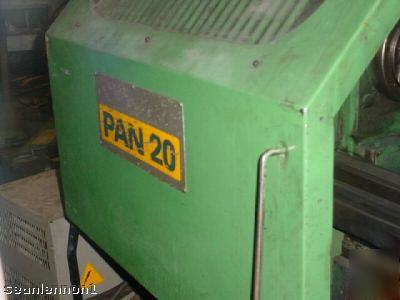

Daewoo pan 20 gap bed cnc lathe (1564)

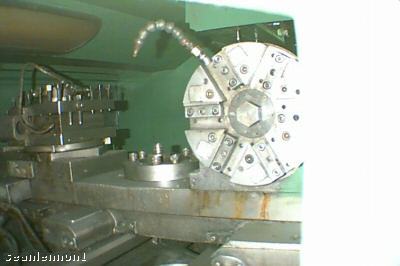

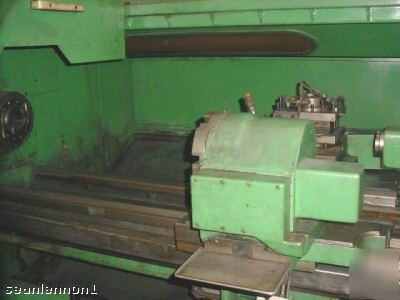

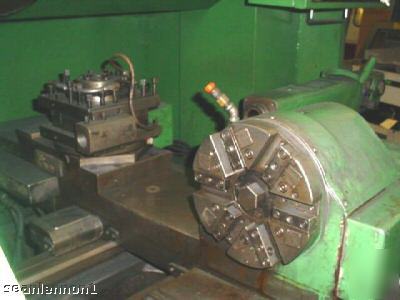

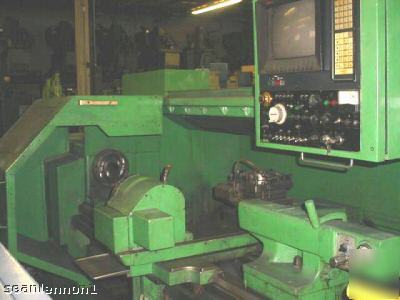

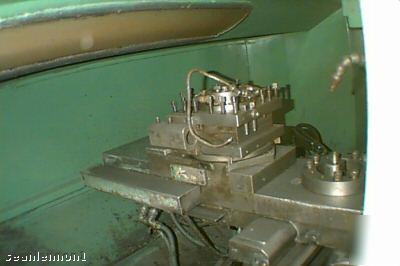

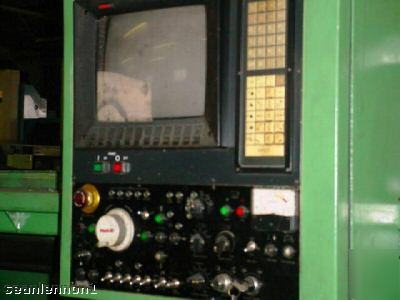

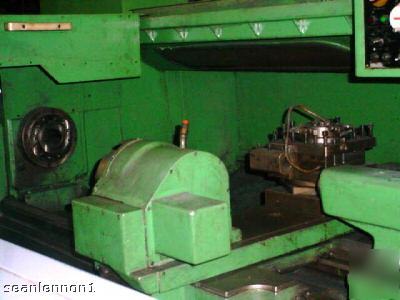

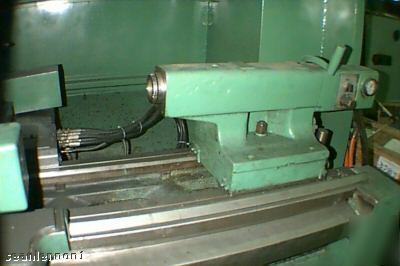

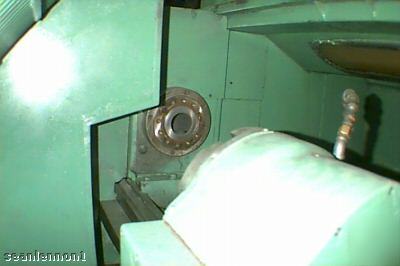

Specifications: Swing over bed: 20.5”.... Swing over cross slide: ll.8”.... Max. cutting dia.: ll.8”.... Max. bar work dia. : 2.5”..... Max. cutting length: 52.6”..... Bed center distance: 59.l”.... Width of bed: l6.5”..... Center height over bed: l0.6”.... Center height over floor: 43.7”.... Spindle nose: ASA A2 #8..... Spindle bore dia.: 3”..... Spindle bore taper: 3.3, l/20.... Spindle center: MT #5.... Spindle dia. /Front brg.: 4.7.... Spindle speed change: 3 Step.... Spindle speed range: 30-2500 RPM6+.... Rapid traverse ‘X’: l97” /min... ‘Z’: 394” / min..... Stroke ‘X’: 14.2”.... ‘ Z’: 54.5.... No. of tools 10: OD-6 ID 4.... Tailstock Center: MT #5..... Tailstock quill dia.: 3.l”.... Tailstock quill stroke: 4.7... Floor space: 203” x 78”.... Machine weight: 9900 lbs..... Main motor: l5/20 HP.... Equipped with: Fanuc l0T Control.... 6-Station front turret.... 4-station rear turret.... Hydraulic draw cylinder without chuck.... Chip conveyor w/coolant system.... Tailstock
