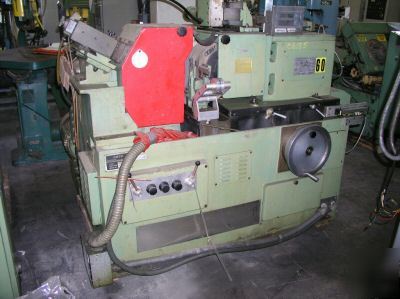

Smtw centerless grinder
Serial # 1005 New 1995 Model # M1050A
Infeed Diameter: 0.28 (Min.)/2.0 (Max.) Inches Limited by Work Rest
Infeed Max. Length: 4.8 Inches
Center Height from Work Table: 8.66 Inches
Maximum Work Load (Infeed): 10 Lbs
Dimensions (LxWxH): 83.5 x 97.6 x 58.2 Inches
Thru Feed Diameter: 0.2 (Min.)/2.0 (Max.) Inches Limited by Work Rest
Grinding Wheel - Horsepower: 14.75 HP
Grinding Wheel - Wheel Size (DxWxB): 16 x 6 x 8 Inches
Grinding Wheel - Wheel Speed: 1668 RPM
Grinding Wheel - Surface Speed: 6855 SFM
Grinding Wheel - Rapid Travel: 30 IPM
Grinding Wheel - Spindle Taper: 1:5 Taper
Grinding Wheel - Dresser Unit: Variable Hydro Feed/Template Forming
Grinding Wheel - Dress Swivel: 1 Axis/± 3 Degrees
Grinding Wheel - Spindle Bearing: Cantilever Type/5 Shoe Hydrodynamic
Regulating Wheel - Hand Wheel/Rev: 0.016 Inches
Regulating Wheel - Hand Wheel/Div: 0.0001 Inches
Regulating Wheel - Maximum Travel RP: 0.07/0.13 Inches
Regulating Wheel - Maximum Travel HW: 4 Inches
Regulating Wheel - Spindle Taper: 1:5 Taper
Regulating Wheel - Oil Reservoir: 3 Gallon 60 ISO Viscosity Grade
Regulating Wheel - Horsepower (DC): 2 HP
Regulating Wheel - Wheel Speed (Variable): 20 - 200 RPM
Regulating Wheel - Vertical Swivel: - 2 Degrees/+ 5 Degrees
Regulating Wheel - Horizontal Swivel: -1 Degrees/+3 Degrees
Regulating Wheel - Wheel Size (DxWxB): 12 x 6 x 5 Inches
Regulating Wheel - Spindle Bearing: Cantilever Type/Bushing and Angular
Hydraulic System – Pressure: 114/128 PSI (Working) 14/21 PSI (Lub.)
Hydraulic System – Reservoir: 30 Gallon 32 ISO Viscosity Grade
Hydraulic System – Horsepower: 1.5 HP
Regulating Wheel - Dress Swivel: 2 Axis/1st -2 to +5/2nd -3 to +3 Degrees
Coolant System - Horsepower: 0.12 HP
Coolant System – Reservoir: 35 Gallons
Infeed & Throughfeed Capability
Hydraulic Swiveling Wheel Head and Regulation Wheel Dressers
Mitutoyo UDR-100 DRO (Mounted on Infeed Carriage)
6" Long Work Rest with Hydraulic Parts Pusher
Cycle Features: Thru Feed Grind, Plunge Grind, Work Ejection, Reg. Wheel Variable
Speed, Feed Start, Feed Retraction, Sparkout Delay, Hydraulic & Wheel Start - Stop
Static Type Wheel Balancing Stand and Arbor
Coolant System with Paper Type Filter Unit
Wired for 3 Phase, 60 Cycle, 230 Volts Only
Made in China, Distributed by EcoTech Machinery
Overall Size Machine: 70" L-R x 65" F-B x 62" H

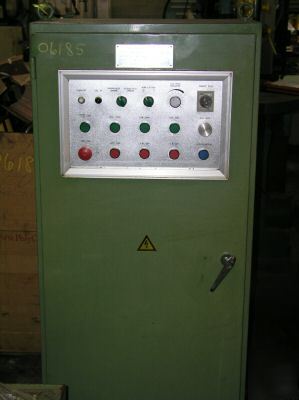

Electric Cabinet: 26" L-R x 22" F-B x 60" High

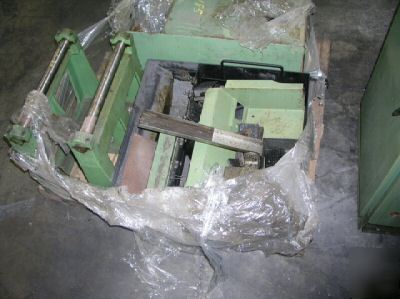

Skid of Accessories: 48" L-R x 48" F-B x 24" High
Skid of Accessories: 48" LR x 48" FB x 42" High
Estimated Total Weight: 6,500 Lbs.
