32-spindle belden cnc multiple-spindle drill #23433

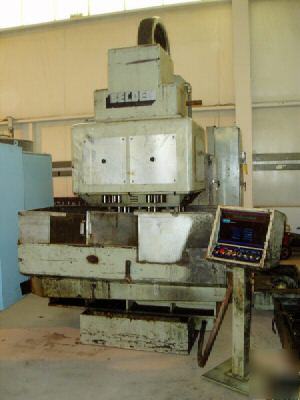

32-SPINDLE BELDEN CNC MULTIPLE-SPINDLE DRILL
New 1988, Serial No 5003/01/0688/2032, Model T5000/CNC
Belden #T5000 CNC Controls w/Drilling, Deep Hole
Drilling, Chip Breaking Drilling, Tapping, Dwell
Variable Feed Rate Control, Infinitely Variable
(32) 3/4" Diameter 6-Point Hexagonal Upper Drives
Automatic Central Lubrication System
Upper Joint Drives, Number............. 32-SPINDLE
Upper Joint Drives, Diameter Hex....... 3/4"
Head Working Area, W x D............... 21" x 34"
Head Feed Stroke, Programmable......... 18"
Table Working Area, W x D.............. 28" x 40"
Distance Floor To Head Flange.......... 73"
Distance Head Flange to Table.......... 37"
Spindle Speeds Range, Inf Var.......... 150 to 2250 RPM
Feed Rate, Range....................... 0 to 45 IPM
Rapid Traverse Rate.................... 150 IPM
Working Thrust Of Head, Maximum........ 30000 LBS
Spindle Motor, Horsepower.............. 25 HP
Hydraulic System Motor................. 30 HP
Weight, Approximately.................. 18500 LBS
REPLACEMENT PRICE: is Approximately $140,000.00
PRICE: F.O.B. OUR WAREHOUSE............ $19,500.00
All machines/equipment subject to prior sale.
