8822 digital coating paint thickness gauge meter

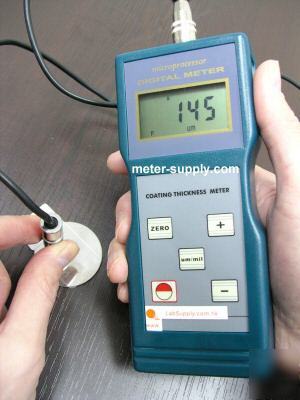

Handheld Coating Thickness Gauge
ETC-8822 COATING THICKNESS METER *for both magnetic or non-magnetic metals
* It meets the standards of both ISO2178 and ISO-2361. Suitable for the laboratory and for use in harsh field conditions.
* The F probes measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminum, chrome etc.) on magnetic metals (e.g. iron, nickel etc.). often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, copper tile, aluminum tile, some alloy tile, paper etc.
* The N probes measure the thickness of non-magnetic coatings on non-magnetic metals. It is used to anodizing, varnish, paint, enamel, plastic coatings, powder, etc. applied to aluminum, brass, non-magnetic stainless steel, etc.
* Used the exclusive Micro - computer LSI circuit and crystal time base to offer high accuracy measurement & fast measuring time.
* Wide measuring range and high resolution.
* Digital display gives exact reading with no guessing or errors.
* The use of durable, long-lasting components, including a strong, light weight ABS-plastic housing assures maintenance free performance for many years. The housing has been carefully shaped to fit comfortably in either hand.
* MEASURING PRINCIPLE: Magnetic induction / eddy current
+/- 1-3%n or 2.5um (Whichever is the greater)
Temp. 0-50 deg.C, Humidity <80%
161 x 69 x 32mm (6.3 x 2.7 x 1.2 inch)
About 260g (including batteries)
Carrying Case, Operation manual, F probe, NF probe, Calibration foils, Substrate (Iron), Substrate (Aluminum)
*The meter includes main unit, Carrying Case, Operation manual, F probe, NF probe, Calibration foils, Substrate (Iron), Substrate (Aluminum)
Please contact us for other country
