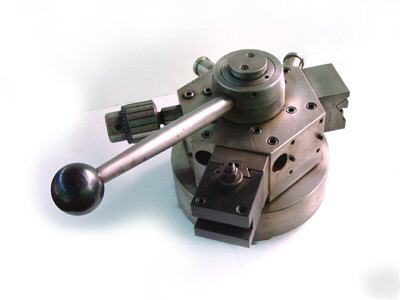

Dorian SX2 automatic 6-position cross slide turret
DORIAN SX2 AUTOMATIC 6-POSITION
FOR 15" COLCHESTER CLAUSING LATHE
CAN BE MODIFIED FOR OTHER LATHES
Indexing Turret, made up of precisely ground, heat-treated alloy steel, is engineered to fully extend the working capabilities of any lathe to assure maximum efficiency in precision and production.To simplify the set up, the SX2 Turret base is custom-machined to fit the cross-slide. Once mounted on the compound, the SX2 Turret operates with the full power of the lathe for turning, threading, and parting off. The SX2 turret is applied directly to the Cross Slide of the lathe. By a simple movement of the ball-handled lever, the turret is automatically unlocked, indexed to the next tool position and relocked, ready for the next machining operation.
12 Tools Capacity (6 External, 6 Internal)
4 Sizes Turret, from Vz to 11/4 Tool Capacity
From Tool Room Lathe to Extra Heavy Duty Lathe
Pre-Bored Holes for I.D. Tooling
Center Height Turret Adjustable
2 Curve Coupling Gears to assure precision and rigidity
Quick Mounting System over the Cross Side
Full Power Feed, Threading and Crossfeed
SX2 Turret has been design¬ed to operate with full lathe power, and available with the most advanced tooling system. 3 Tooling Systems are available. Fixed Tool Holder System 'attached direct to Tiirfiet Face Quick Change Tool Holder System fits the Quick * Change Holder Base for a rapid and precise tool change Micro Adjustable Holder System with micrometer adjustment screws for preset depth cut, fits the Quick Change Tool Base Also available:
CAN BE MODIFIED FOR OTHER LATHES
IDEAL FOR CNC/MANUAL LATHES TO INCREASE PRODUCTIVITY
