High power star led lighting meter heatsink parts kit


LLK-02 LED Lighting Kit Bracket Parts
You are purchasing a brand-new Made-in-Canada Onstate Technologies star-type, high power led lighting/meter heatsink plate parts kit to make you own LED lighting unit. It comes with LED mounting hardware so no glue is required. This kit provides maximum performance and flexibility for indoors or outdoors LEDs lighting applications. Visit /Tech-specs/tech-specs.htm for more information on wiring and assembly. We will provide technical support for your application.
The LLK-02 LED lighting kit is specifically designed for mounting LED arrays or star-type, high power LEDs into a metal box. The aluminum bracket fits snug against the die-cast box sides to provide maximum heat transfer to the surrounding. The kit is best used with a single-gang, die-cast Thomas & Betts Red Dot Series IH type dry-tite universal box that is readily available from electrical hardware stores. The LLK-02 kit is also suitable for mounting instrumentation, meters, displays or other electronic products.
BP-LL-01 metal plate assembly:
Dimension: 2.57” (W) x 3.37” (L) x 0.77” (H)
Material: 14 gauge aluminum (~1/16”)
Hardware: 4-40 flat head SS machine bolts
Dimension: 2.85” (W) x 4.60” (L) x 1/8” thick with 1/16” undercut at outer edges
Hardware: 6-32 pan head SS machine bolts
Heatsink: TO-220 or TO-3 mounting on back
Enclosure: Die-cast single-gang electrical box or similar
LEDs: High power. 6x high power star-type, 10W max. 15W with added heatsinks.
Onstate LLK-01 kitLI90 LED array.
LED lens: LED light collimator (lens) and holder

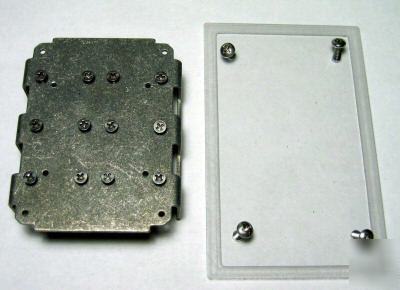

OT-LLK-02: LED lighting kit bracket parts. Metal bracket, clear window and hardware.
/Tech-specs/tech-specs.htm
copy and paste if link not working.
http:// /Tech-specs/tech LLK led lighting kit-02 rev2.pdf
http:// /Tech-specs/tech%20LLK%20led%20lighting%20kit-02%20rev2.pdf
See http:// for more information.
