Tek 7B53A service/op manuals - w/no advertising added

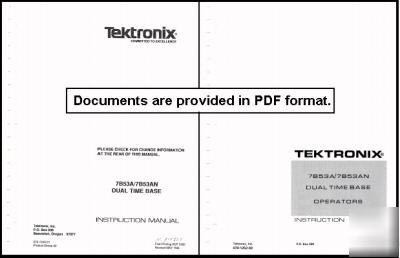

Tektronix 7B53A / 7B53AN Plug In Service and Operating Manuals in both Very High and in Standard Resolution PDFs on CD
(No need to "email for samples," so no need to worry about getting sold to a SPAM list!)
(Please read FAQ or "About Me" Page)
These PDFs include operations information, maintenance and calibration procedures, complete parts lists, board component locators and schematic diagrams. These are scans of the manufacturer's commercial manual, NO MILITARY MATERIAL is used.
SCAN PARAMETERS (Very High Res PDF):
Text with photos: 600dpi grayscale (contrast adjusted)
Text with Drawings: 600dpi black and white
Schematics: 600dpi black and white
Schematics and board overlays with color notes: 256 colors 600dpi
Please be aware that our scans are actually made at the specified resolution, we don't just write in the specs that we think will "sell" you. Another vendor exactly copies our specs (and even our wording!), even for the material he distributes that he merely downloaded!
Scan parameters of the standard res PDF: The standard res PDF is done in resolutions that vary depending on individual page content, but are never higher than needed to produce a useable quality, quickly navigable file that will do the job without consuming more time and resources than are needed.
Click HERE to see a set of sixty-five 7000 series *SERVICE* Manuals (for 61 Different Plug-Ins), and click HERE to see a set of thirty-eight TM500 series Plug-In Manuals.
"AND IF THAT'S NOT ENOUGH FOR YOU":
As "bonus" material, includes the Tektronix Semiconductor Parts Catalog, plus an interesting and informative Articles PDF.
