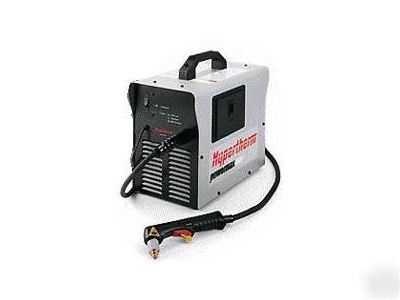

Hypertherm powermax 190C plasma cutter // free shipping
(please call with questions regarding trade in's)
Portable air plasma cutting system
* 1/8" (3 mm) Recommended Capacity
* 3/16" (4.5 mm) Maximum Capacity
* 1/4" (6 mm) Severance Capacity
The benefits of Hypertherm technology
* Integrated compressor - no air
(or 230 V international) input
* 1.32 kW cutting power exceeds
* Portable, professional package
* Built-in storage compartment
Powermax190c makes these industries more productive:
* HVAC fabrication and installation
* Building contractors - metal studs
* Trade contractors - mechanical
* Auto or truck service and repair
* Factory and farm maintenance
* Other sheet metal applications
Superior performance and versatility
The Powermax190c plasma cutting system
takes professional metal-cutting power where
it has never been before. Just plug it into most household power± and you're in business.
And don't worry about providing separate air, because a built-in compressor gives you all
you'll need. You'll be able to cut most sheet metals almost anywhere.
* Recommended capacity: mild steel* to 1/8 inch (3 mm) at cutting speeds over
20 inches (500 mm) per minute.
* Maximum capacity: mild steel* to
3/16 inch (4.5 mm) at cutting speeds
over 10 inches (250mm) per minute.
* Severance capacity: mild steel* to
1/4 inch (6 mm) at slow speed.
Non-ferrous metals typically require a
A 20-amp circuit for 120-volt operation is recommended (10-amp for 230 V).
Superior power supply design delivers proven Hypertherm performance in a compact, truly portable package.
* 1.32 kW delivers superior cutting
power from a 120 V (or 230 V, 1PH internationally) outlet for the sheet
* Built-in air compressor provides
* Boosted open-circuit voltage rating can accommodate low-line conditions of -20% typical on work sites or when utilizing
* Advanced electronic architecture provides constant current control for consistent quality on varying power levels.
* A chopper power supply provides
superior energy efficiency over
* Hypertherm's patented pilot-arc control circuit facilitates uninterrupted cutting on expanded metal or grating while
minimizing torch consumable wear.
* Over- and under-voltage sensing circuits protect the machine from damage and permit motor-generator operation
(on 2.5 kVA auxiliary circuits).
Hypertherm's new patented PAC105 torch design delivers maximum performance in a rugged, ergonomic handle. Intelligent torch features promote cut accuracy and speed, while enhancing productivity and life.
* Higher speed and capacity. Total
cutting power is a product of output
current (amps) and output voltage. The PAC105 torch is designed to generate
a boosted output voltage - rated at 110 volts - producing up to 45% more total cutting power than typical competitors
with the same output current.
* Longer consumable life. HyLifeâ„¢ electrodes last longer than ordinary designs (300% longer, in some tests)
by using the same hafnium-sizing
technologies developed for Hypertherm's advanced mechanized systems.
* Easier operation. An optional patented
nozzle shield (shown right) provides
additional nozzle protection and allows superior, no-stick drag cutting and template following.
* No interference. A patented "blow-back"
torch design provides a strong pilot arc for penetrating rust, paint and other coatings without the high-frequency interference
that can damage sensitive electronics (PCs, phone systems, machine controllers, automobile microchips).
* Rugged operation. No breakable
ceramics threaten the life of the torch.
The durable, high-impact clamshell
handle provides years of reliable service.
* Cooler operation. A standard post-flow
feature provides torch cooling after the cut
for longer torch life and easier consumable
automatically stops the post-flow on
re-trigger for rapid re-fire.
* Safe starting. Hypertherm's patented
safety trigger protects against
* Ready access to consumables.
A built-in parts compartment keeps consumables close at hand.
Superior field reliability for the professional contractor or sheet metal worker
The Powermax190c is designed to travel and work hard at the toughest job sites. Over 30 years of research and development dedicated exclusively to plasma cutting results in
reliability that is unsurpassed.
* Mechanical and electrical design are validated through aggressive, accelerated life, stress, transportation and field testing.
* Voltage sensing circuits protect against mis-wiring in the field.
* Designed to resist damage from rain (to IP23 standard)
* Backed by Hypertherm's full two-year power supply and one-year torch warranty
* CSA/NRTL and CE safety certifications document safety compliance. Beware
of systems without these important certifications.
* Circle Cutting Guide for cutting
* Leather Cable Covers for torch
leads provide additional protection
* Power Supply with Integrated
* PAC105 Torch with Lead 20' (6.1 m)
* Work Cable with Clamp 15' (4.5 m)
* Primary Power Cable 10' (3 m)
* Leather Torch Cable Covers
Torch Consumable Parts (Standard)
Torch Consumable Parts (Shielded)
35% @ 12 Amps, 40°C (104°F) on 20/10 A circuit
15.8" (400 mm) D; 8.5" (216 mm) W; 12"
