Alcoa fujikura FSM30R fusion splicer with case-usa

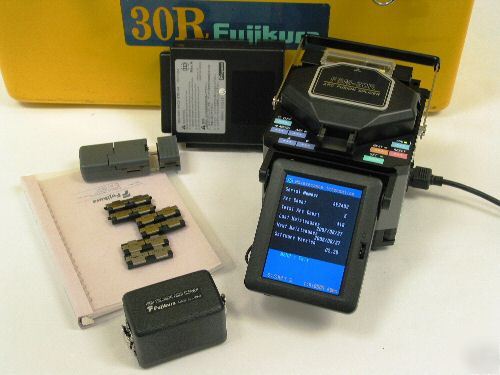

LIKE NEW WITH ONLY 500 TOTAL ARCS SINCE NEW WITH CLEAVER AND CARRY CASE -6 MONTH WARRANTY SERIAL NUMBER AE2493 SOFTWARE V.2.28 NEXT MAINTENENCE DUE AUG 2008
The Fujikura FSM-30R RIBBON fusion splicer is an automatic core alignment splicer utilizing the direct core monitoring Profile Alignment System (PAS) to achieve ultra low loss and very accurate splice loss estimation, regardless of fiber age or quality. While smaller and lighter than previous models, the FSM-30R has increased capabilities and more operating modes. The FSM-30R optical system and microprocessor automatically align the fibers and inspect cleave quality. By using the Eccentricity Correction Function (ECF), the splicer determines the fiber core/cladding eccentricity, and it automatically compensates in order to assure precise core alignment of the completed splice. The field proven performance and reliability of Fujikura core alignment PAS splicers are improved with the FSM-30R.
Automatic core to core low loss splicing regardless of fiber quality or age
Automatic compensation for atmospheric pressure, temperature, and humidity variation
Arc power is optimized automatically, splice-by-splice, by special arc power analysis software
Splicing modes added for cutoff wavelength shifted (CS), in additional to SM, DS, and MM fiber
Built-in tube heater has programmable sleeve length and heating profile
Operating modes provided to create an in-line attenuator
Mode field diameter compensation program (i.e., to splice Erbium-doped fiber to SM)
Menu driven for all functions including maintenance, tube heater programmability and other options
Optional PCMCIA card slot to increase splice data storage
The 5†LCD monitor provides excellent visibility even in bright sunlight
Fiber Splicing Capability SM @ 1310nm, DS @ 1550nm, CS, MM, Erbium-doped fiber
Splice Loss 0.02dB with SM fiber, 0.01dB with MM, and 0.05dB with dispersion shifted (typical)
Cleaved Fiber End Angle Alarm Programmable up to 5º
Fusion Splices/Battery Charge 30 (including splice protection sleeve tube heater cycle)
Viewing Method CCD Camera with high resolution 4" LCD monitor with excellent viewability in direct sunlight
Operating Temperature -10ºC to +50ºC
Power Supply 85 to 265 VAC (50/60 Hz) & 10 to 15 VDC
Dimensions (W x D x H) 210mm x 187mm x 170mm (8.3" x 7.4" x 6.7")
Attenuation Capability Programmable from 1dB up to 15dB
