Busio-buzzer (busio buzzer out) basic stamp, pic, atmel

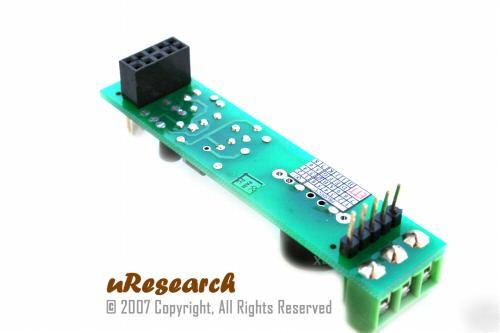

The board can be use with MR-BusIO-MAIN board or stand-alone. PCB size is 0.63†x 2.80â€
The PC817 require at least 5mA to drive input photo-coupler LED. It can take up to 6V in reverse bias. For an output (between collector and emitter), it can drive up to 35V with 50mA continuous current.

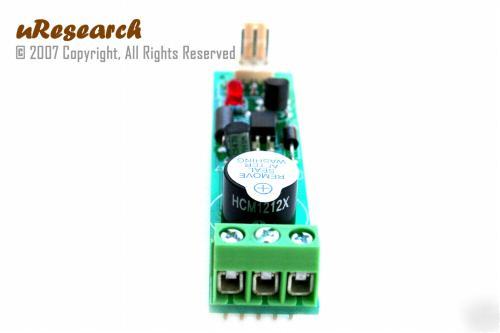

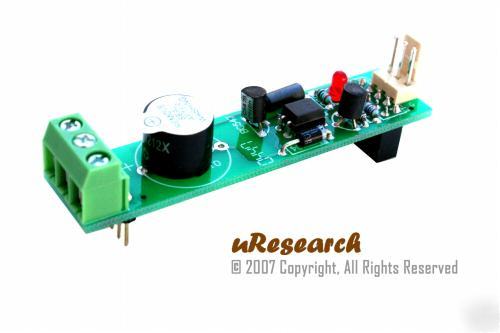

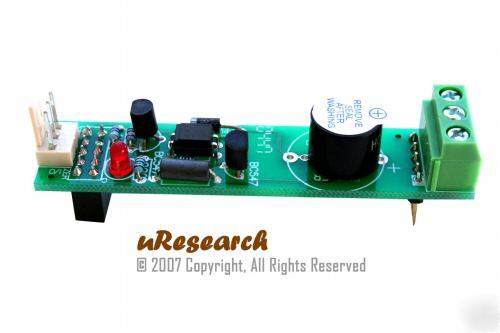

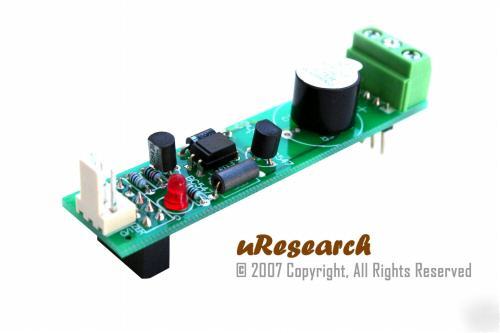

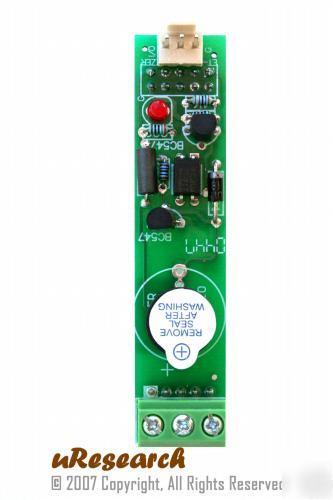

The operation of this board starts when applying logic HIGH to an I/O pin. The indicator LED then illuminated. The output of PC817 is driving second BC547 transistor which drive the output buzzer.
This board can be uses to make buzzer sound.
For more information please see: MR-BusIO-BUZZER User Manual
“This is sold fully assembled and testedâ€
