Keithley 2700/7700 20-ch. dmm data acquisition logger
Keithley 2700/7700 20-Ch. DMM Data Acquisition Datalogger
Datalogging System w/20 Channel Differential Multiplexer Module
w/Complete User AND Service Manuals on CD-ROM
Please review item Description & Condition
MANUFACTURER'S Specifications:
KEITHLEY 2700 - Integra Series systems (2700, 2701, 2750) combine precision measurement, switching, and control in a single, tightly integrated enclosure for either rack-mounted or benchtop applications. These cost-effective, high performance test platforms offer affordable alternatives to separate DMMs and switch systems, dataloggers/recorders, plug-in card data acquisition equipment, and VXI/PXI systems. The Integra Series plug-in switching and control modules offer unmatched flexibility and testing efficiency for a wide range of industries and applications. System builders can create test solutions with a combination of channel count, cost per channel, and system performance unmatched by any other single-box measurement system. The input modules provide the flexibility to vary the channel count from 20 to 200 (2-pole), apply a stimulus to the device under test, route signals, control system components, and make precision measurements with up to 14 functions. Robust digital I/O capabilities can be used for triggering, handshaking with other automation equipment, and alarm limit outputs. Scan rates of up to 500 channels/second (up to 3500 readings/second on a single channel) will increase test productivity.
* Combines functions of DMM, switch system, and datalogger
* True 61/2-digit (22-bit) resolution
* Choice of 12 switch/control plug-in modules
* Up to 200 differential input channels (with 300V isolation) for measurement and control
* Convenient front panel inputs
* Free LabVIEWâ„¢, LabWindows/CVI, Visual Basic, C/C++, and TestPointâ„¢ drivers (IVI style)
* GPIB and RS-232 communications capabilities
* Free ExceLINXâ„¢-1A datalogging software
* Production test of electronic products and devices
* Accelerated stress testing (AST)
* Process monitor and control
* Device characterization/R&D
* Low ohms, multichannel measurements
KEITHLEY 7700 plug-in module offers 20 channels of 2-pole or 10 channels of 4-pole multiplexer switching that can be configured as two independent banks of multiplexers. There are two additional protected channels for current measurements. Automatic CJC is provided so that no other accessories are required to make thermocouple temperature measurements. In addition, the Model 7700 contains latching electromechanical relays that enable signal bandwidths of up to 50MHz. The Model 7700 is ideal for RTD, thermistor, and thermocouple temperature applications.
* 20 channels for general-purpose measurements, plus two channels to measure current
* Oversize screw terminal connection blocks are standard for easier connections
* 300V, 1A capacity for voltage channels; 60W, 125VA
* 3A capacity for current channels
* Low insertion loss of up to 50MHz
* Relay closures stored in onboard memory
* RTD, thermistor, and thermocouple temperature applications
Unit will be re-conditioned, and Calibrated to meet manufacturer's specifications in our ON-SITE NIST lab by one of our expert certified technicians.
This unit comes from a working large-scale industrial/lab environment. Comes with:
5 day ROR minus s/h both ways
F no other accessories, manuals, modules, probes, orig. packing, etc.
Contact via E-mail for more information.
Keithley 2700/7700 Precision 20-Ch. DMM Data Acquisition
w/20 Channel Differential Multiplexer Module
w/Complete User AND Service Manuals on CD-ROM

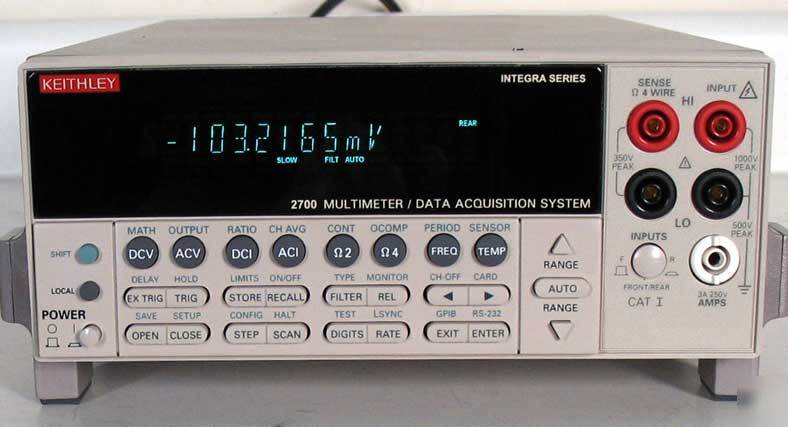

Image Gallery (click thumbnail for larger view)
IMAGES ARE NOT NECESSARILY THE SERIAL NUMBER/UNIT YOU WILL RECEIVE
Item is sold without accessories probes, power cord, software, carrying case, etc.) unless specifically mentioned in the above description.
No implied or expressed warranty unless otherwise stated.
Item descriptions are as accurate as possible but may contain errors.
Photo images are of the actual item. What you see is what you get.
Technical information is provided as available.
We reserve the right to rescind any sale if not contacted within 3 days.
We currently have skids of equipment that have yet to be placed in inventory, and we are looking to move items quickly. We need to make room!
If you don't see what you need, contact us. Your much-needed piece of technology may still be waiting for a spot on our shelves!
IN THE EVENT A SOLD ITEM CAN NOT BE CALIBRATED BEFORE DELIVERY: Before our items are put into inventory they are examined in our lab for operational status. Some are then stored in the warehouse until sold at which point it is brought back into the lab for a complete testing and the issuing of the 'CAL/CERT'. Others already have a 'CAL/CERT' issued before being placed in the warehouse. Though rare it is possible for the item to be found during the 'CAL/CERT' process to have a defect not apparent in the initial operational examination. At this point the item is fully reconditioned with the defect corrected... HOWEVER there are times the item my not be repairable or the manufacturer no longer has a part needed to correct the problem. We stock most parts here but there are the times we need to order it and it could happen the part is unavailable. We have multiple units of most of these items and can find one that is completely operational or take a part from one to fix the other.
Contact via E-mail for more information.
(confirmed address please)
Wire Transfers (on large sums we may require the address and phone number of the issuing bank or financial institution). $15 fee for domestic wire transfers. (International wires add $40 which also includes extra paperwork on our end.
Pennsylvania residents will be charged 6% sales tax. Exempt status must furnish us with a Certificate of Exemption.
Contact via E-mail for more information.
