300 gallon pfaudler reactor - glass lined - 100/fv/90 p
a r n o l d EQUIPMENT COMPANY
phone: (***)-831-8485 - fax: (***)-831-8414
300 GALLON PFAUDLER REACTOR - GLASS LINED - 100/FV/90 PSI

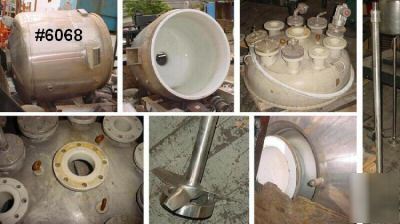

1 - used 300 gallon Pfaudler Glass Lined Reactor
Built in 1995 (repaired by Pfaudler in 2004)
Rated 100 psi/FV internal @ 300 deg. F.
Stainless steel(reported to be T-316) jacket rated 90 psi @ 300 deg. F.
Vessel is approx. 43 3/4 in. ID x 38 1/2 in. straight side
Approx. 10 in. dia. center bottom outlet
Lug mounted with structural support. Serial #J001650
Pressurized mechanical seal. National Board #48124
Dome top with misc. flanged inlets including 5 in. ID top center for agitator
Driven by .5 HP/.373 kw Lightnin Vektor model V5S37 agitator
Vektor S/N - 95/e35650. 230/460V. UL listed
Metallic shaft is approx. 1 1/4 in. dia. x 60 in. long
with (3) pitched turbine blades & stabilizer ring (ground smooth welded)
With approx. 4 in. dia. Fluid Flow Products electric/air solenoid top inlet valve
