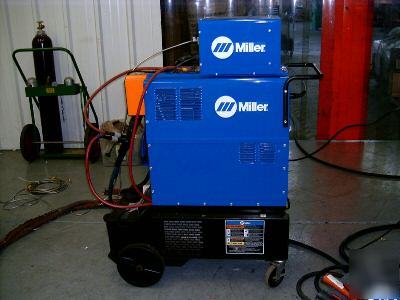

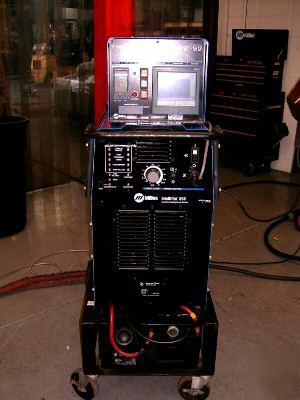

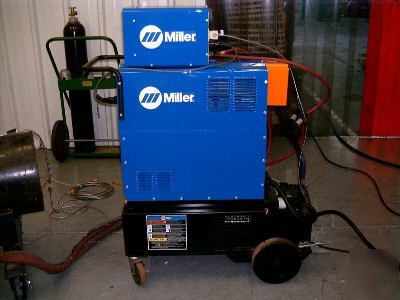

Miller induction heating package complete 25KW

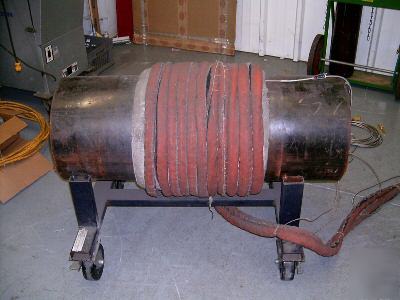

1- 80FT USED HEATING COIL CABLE P/N#194908 COST $1621 NEW
1- 50FT USED OUPUT EXTENSION CABLE P/N#194894 COST $1852 NEW
1- 50FT USED THERMOCOUPLE EXTENSION P/N#194968 COST $705 NEW
1- USED SAFETY GROUND P/N#190700 COST $375 NEW
1- NEW 100FT ROLL OF THERMOCOUPLE WIRE, COST $150 NEW
1- NEW 10PACK OF THERMOCOUPLE PLUGS P/N#195098 COST $52 NEW
2- NEW ROLLS OF PRE-HEAT INSULATION P/N#204668 COST $500 NEW
* Preheating of weldments up to 400'F to drive out moisture and minimize temperature differentials in the weld joint area
* Post weld stress relief up to 1500'F on high yield materials for minimizing cracking after welding
* Preheating of pipe joints before application of protective coatings to aid in adhesion and curing of the coating
* Pipe coating removal by induction preheating for coating removal using just a brush and scraper
* Heats by non-contact, electromagnetic conduction instead of resistance heating like conventional systems
* Induction heating takes place within the part while conventional resistance heating takes place on the surface
* Inverter Technology is faster and more efficient that induction heating systems using conventinal technology
* Highest productivity due to quick set-up and an accelerated, programmable heating process
* Enhanced operator safety since welder's are not susceptible to burns due to the design of the coil and blanket system
* High energy savings resulting from operating efficiency of both the inverter power source and the induction heating process
* 0-25 kW inverter-based, solid-state, high-frequency induction heating Power Source
* IHTS Controller with digital recorder for programming and monitoring of heat processes
* Portable Cart and 2.5 gallon Coolant System
* Pipe Insulation Blankets, sized and stenciled for pipe size, provides 50 or more thermal cycles
* Liquid-Cooled Induction Heating Cables (30 to 80 ft lengths)
* Power Extension Cable with Twist-Lock Connectors (available in 10 ft, 25 ft, and 50 ft lengths)
* Process: Induction Heating
* Rated Output: 25 kW at 100% Duty Cycle, 60 Hz
* Pipe Size Range: 2.5-52" dia., 3/8" to 3" wall thickness
* Input Power: 3 Phase, 460 VAC, 50/60 Hz
* Input Amperes at Rated Output: 45 amps
* Various flat plate and irregular shaped applications
* H: 47" (1194 mm), W: 27" (688 mm), D: 44.5" (1130 mm)
****SALES TAX NOTE: BY LAW WE CHARGE SALES TAX IN ALL 50 STATES***
