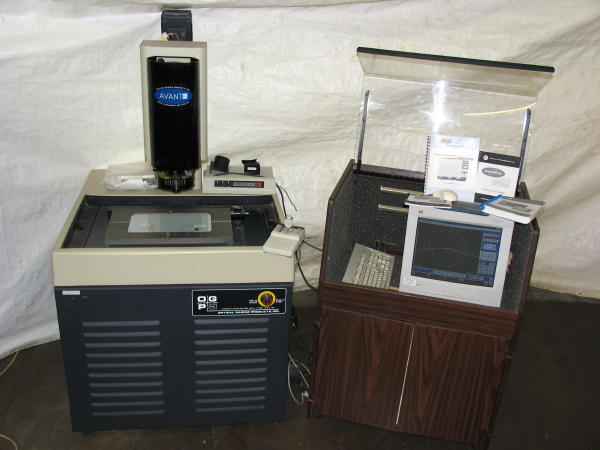

OGP Non-Contact Video Measuring Instrument See Video
OGP Non-Contact Video Measuring Instrument
Serial No. AV2501292 New 1998
Glass Viewing Area: 7-1/2" x 13-1/2"
Work Table Load Capacity: 45 Lbs.
DC Servo Motion Control Drives: 4-Axis (X, Y, Z & Focus)
XYZ Scale Resolution: .00001" (1/4 Micron)
Overall Dimensions, Work Stations Only: 47" x 47" x 30"
Weight of Work Station, Approx.: 1750 Lbs.
OGP MeasureMind Plus Graphical Measurement Software
Panasonic Digital Color CCD Video Camera
Accu-Centric Auto Calibrating Zoom Lens
PC Pentium II Computer with Windows 95
Fiber Optic Smart Ring Light Source
HP Deskjet 1600C Color Printer
All Items Subject to Prior Sale
Be Sure to Verify Specs & Condition Prior to Purchasing
CONTACT US: We are available to answer your calls and inquires, Monday thru Friday, 8am - 5pm, at 860.828.3541, or you can email us at ****@industrialsurplus.com
