#16-56 barber-colman horizontal gear hobber #24972

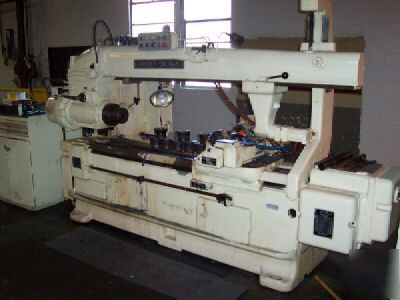

#16-56 BARBER-COLMAN HORIZONTAL GEAR HOBBER
New 1972, S/N 4409, Model 16-56
Standard Hobslide (+/- 45 Degree Swivel)
Anti-friction Bearing Hob Head
One (1) Hob Arbor (1.25" Diameter)
Good Assortment of Change Gears
Work-head with Anti-friction Bearings
Pneumatic Collet Chuck with Assortment of Collets
Power Rapid Traverse For Hob Carriage
Full Complement Of Electrics (Motors/Controls)
Max Rated DP (Nom)..................... 6 DP/(4.2 Mod)
Max Rated Diameter of Work............. 16"/(400mm)
Maximum Hob Diameter................... 5"/(127mm)
Max Hob-Slide Travel................... 56"/(1422.4mm)
Max Work Slide Travel.................. 8"//(203.2mm)
Maximu Dist, Work Spdl Ctrln To
Hob Spindle Centerline................. 8.75"/(222mm)
Hob Spindle Centerline................. .75"/(19.05mm)
To Tailstock-Center.................... 84"/(2134mm)
Work Spindle Thru-Bore Dia............. 4.13"/(105mm)
Hob Speed Range........................ 59 to 246 RPM
Feed Ranges............................ .015 To .150 IPR
Main Drive Motor....................... 5 HP/1800 RPM
Rapid Traverse......................... 2 HP
Coolant Pump........................... 1/4 HP
Lubrication Pump....................... 1/20 HP
Floor Space Required................... 140" x 62"
Floor Space Required................... (3556x1575mm)
Machine Overall Height................. 76"
Machine Overall Height................. (1930mm)
Machine net weight (approx)............ 8,300 LBS.
Machine net weight (approx)............ (3765 kGs)
PRICE: F.O.B. OUR WAREHOUSE........... $59,500.00
All machines/equipment subject to prior sale.
