Nib cae/alpheus/cold jet mi last sdi-5 dry ice cleaner

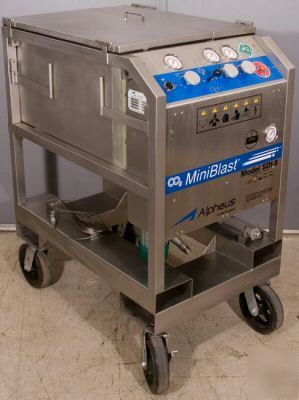

Cold Jet (Formerly CAE / Alpheus) MiniBlast SDI-5 CO2 Dry Ice Cleaner
Comes with a manual and what you see in the pictures. If you don't see it, you probably wont get it.
Specifications are from Cold Jet and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
There is very little use on this item (please look at the hour meter), it may have never been used. We do not have any of the accessories with it. They can be purchased from Cold Jet. This unit is like-new.
List Price is: $33,950.00 NEW from Cold Jet.
The Unit's Serial Number Tag Reads:
Model Number: SDI-5 (Tag actually reads just SDI but the front says SDI-5)
Link to the Datasheet: Cold Jet SDI-5 Dry Ice Cleaner Datasheet
Granulates Any Available Form of Dry Ice:
This versatile blasting system is capable of converting any form of dry ice - block, pellets, or nuggets - into blastable granules.
Largely because block dry ice is often easier to get and less expensive to use than the rice-size pellets required by other units, the SDI-5 has been one of our most popular units since it was introduced in 1995.
The Versatile Solution in Dry Ice Blasting:
The CO2 MiniBlast SDI-5 provides fast, solvent-free cleaning without secondary waste. The dry ice particles sublimate upon contact with the targeted surface which allows you to clean equipment in place. The process requires no cool down, no masking, and little or no disassembly.
* Blast-clean with any available form of dry ice: block, pellets or nuggets
* Intuitive, ergonomic controls make it simple to operate
* All-pneumatic design makes maintenance easy
* Ample hopper capacity of 120 lbs. lengthens blasting time between refills
* Rugged stainless steel construction for years of hard use
* Portable 24-1/2" wide unit moves easily about the shop floor. Fork lift slots on frame are accessible from all sides
* Features durable, molded rubber casters with front brakes and swivel locks on the back casters
For Use With Any Type of Dry Ice (U.S. Pat. No. 5,520,572)
* Innovative design uses dry ice block, pellets, or nuggets to create a versatile blast cleaning medium
* Intuitive ergonomic controls make it simple to operate
* All pneumatic design makes maintenance easy
* Small and light enough to go almost anywhere
* Rugged Stainless steel construction for years of hard use
* Small size - only 24 and 1/2" wide,
* Lightweight - weighs only 430 lbs. dry.
* Front casters have brakes.
* Back casters have swivel locks.
* Fork lift accessible from all four sides.
* Four-corner lifting/tie-down lugs.
* Adjustable dry ice feed rate plus a wide range of blasting pressures delivers a broad range of cleaning capabilities.
* Ample hopper capacity of 120 lbs. lengthens time between refills.
* Repeatable process control with regulated air.
* Two mode feeder selector for refill/blast.
* Includes cleaning gun and 25' of standard hose.
* All pneumatic operation - eliminates hazards of electrical shock.
* Safety interlocks prevent accidentally contact with moving parts.
* Bleed and shut-off valve for safe disconnection of air supply.
* Lockable valves to prevent unauthorized use.
* Static wire cable for machine grounding and static control.
* Ergonomic control panel is high-mounted for easy reach and angled for quick viewing with simple, intuitive controls.
* Integral hose rack for convenient hose storage.
* Reinforced, stainless steel construction.
* Insulated, double-walled ice storage hopper reduces sublimation and minimizes external condensation.
* Access to all components without disassembly.
* Hinged control panel opens fully for servicing.
* PM limited to filling motor oiler and changing air filters.
Dimensions: 24 and 1/2" x 37" x 45" (WxLxH)
Supply Pressure Range: 75-300 psig
Blast Pressure Range: 40-250 psig **
Storage Capacity: 120 lbs. of dry ice
Ice Consumption: 1-6 lbs/min with 3:1 turndown
*Weight does not include gun assembly. **Most cleaning applications are 85-90 psi. Different Industrial Gun required for pressures above 125 psi.
For More Pictures Please Click the Following:
* Picture 8 - Dry Ice Area #1
* Picture 9 - Dry Ice Area #2
* Picture 10 - Dry Ice Area #3
* Picture 11 - Hose Connections on the Bottom-Front
* Picture 12 - Plumbing, Right Side View
* Picture 13 - Serial Number Tag
