Wavetek cli-1750 catv cable signal level leakage meter
WAVETEK CLI-1750 Combination Signal Level / Leakage Meter
This Sale is for the CLI-1750 Signal Level / Leakage Meter ONLY. The LST-1700 Signal Transmittor is NOT included.
Included Accessories Listed at the Bottom.
Be sure to add us to your Favorites list!.
Warranty: 30 Day Exchange Warranty
CLI-1750 Combination Signal Level / Leakage Meter
The Acterna CLI-1750, used in conjunction with the Model LST-1700 Signal Transmitter, helps identify and locate potential problems with the distribution network and home wiring prior to activating these new services. The Wavetek / Acterna CLI-1750 and Acterna / JDSU LST-1700 are compact home wiring testers capable of measuring not only routine power levels, but also digital average power, leakage,frequency domain reflectometry (FDR), and sweep, which can be useful for a wide range of trouble shooting from installation to characterizing existing wire. The instruments superior user interface and performance can reduce the installation time and repair cost.
* Complete solution for installers eliminating the need for multiple meters or testers.
* Combination signal level meter, leakage meter, and home wiring tester.
* Easy-to-use, portable, and economical.
* Comprehensive tests to verify the quality of an installation.
* Icon-based user interface for ease of operation in all languages.
* Signal levels are checked to verify proper levels arriving at the tap and at the house.
* Frequency response is measured to verify proper losses and to uncover any roll-off or sharp changes in response.
* Frequency Domain Reflectometry test (FDR) reveals precise location of sources of reflections and degree of severity.
* Leakage test finds potential points of ingress, as the source may not be in operation while the installer is at the house.
* Signal Scan mode shows all channel levels at once.
* DigiCheck(TM) digital signal average power measurement option.
* Frequency agile leakage detection and measurement.
* Pass/fail check ensures FCC compliance and reduces subscriber call-backs.
Digital Average Power (optional)
Approximately 6 carriers/second
Input Sensitivity (with HD-1 dipole or VMA-3 mag mount)
From 0.5 V typical with LT1000
0.5 to 2,000 V (at input connector)

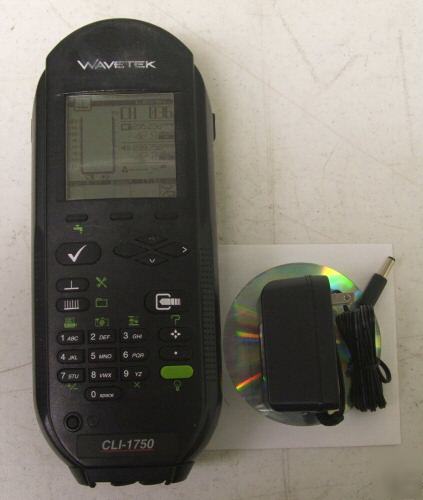

* Wavetek CLI-1750 Signal Level / Leakage Meter
