Esab stealth 5000 20' x 60' plasma cutting system 1995

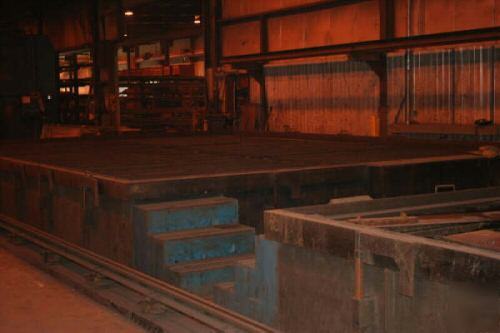

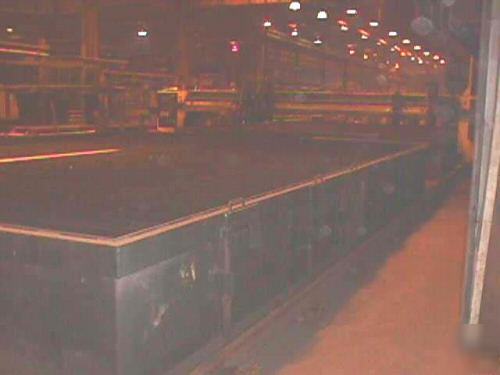

This is one massive system. Have capacity like no other. This machine has a True 20' X 60' cutting envelope. The tables are a custom built, heavy duty, ballasted design.
Loading onto your truck is included. Delivery, Install and training available.
More pictures at

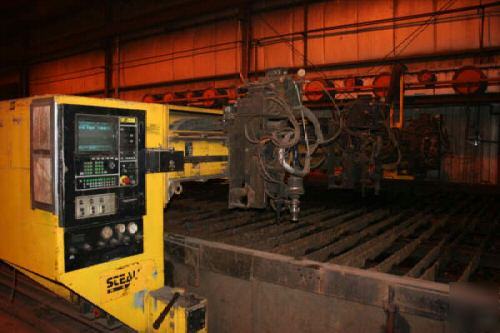

PRE OWNED 1995 ESAB STEALTH 5000 GANTRY STYLE HIGH PERFORMANCE PLASMA SYSTEM
CENTER TO CENTER MACHINE RAILS 23’

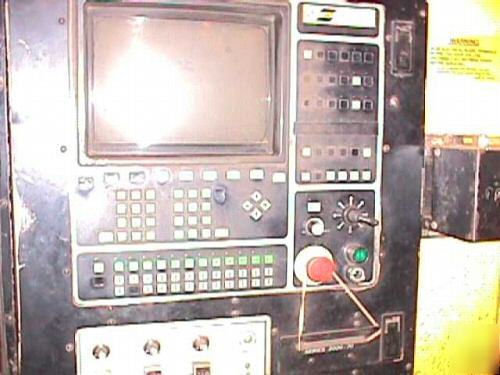

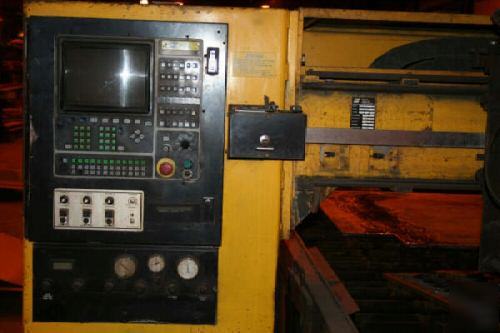

VISION 2000 CNC CONTROLS (LEFT HAND MOUNTED)
- INFINATELY VARIABLE SPEED DRIVE CONTROLLER
- AUTO CURVE ACCELERATION / DECELERATION

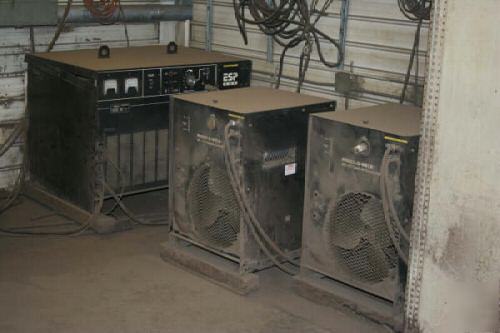

(3) ESAB ESP 3000 ULTRALIFE , 300 AMP PLASMA POWER SOURCE
- MOTORIZED TORCH STATIONS, 9.5” TRAVEL
MTC TURBONEST NESTING SOFTWARE PACKAGE

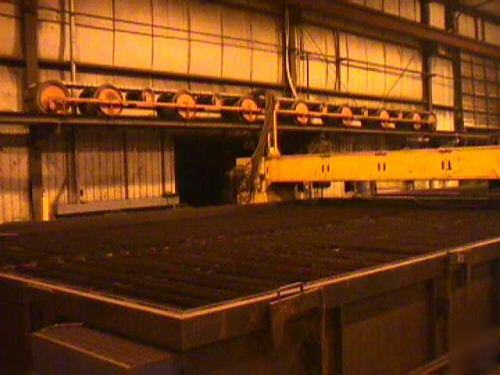

GANTRY RUNNING ON HEAVY DUTY CRANE RAIL
PRECISION DUAL RACK AND PINION DRIVES IN X AXIS’ WITH PLANETARY GEARBOXES
SINGLE RACK AND PINION DRIVE ON Y AXIS WITH BAND FOR ADDITIONAL HEADS
POWER TRACK IN LONGITUDINAL AXIS, HOSE AND CABLE CARRIER SYSTEM
NITROGEN REQUIRED FOR PRE FLOW
