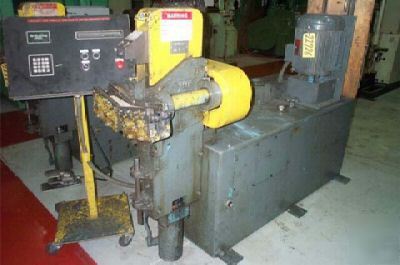

1-1/4" pines no. 3T pipe, tube & bar bender, 1985
1-1/4" PINES No. 3T Pipe, Tube & Bar Bender, 1985
Bending Capacity 1-1/4" O.D. x .065" Wall (Steel Tubing),
Tube Size Range Up to 1-1/4" O.D.,
Centerline Radius Range (Permitting Bending to Maximum Angle)
2" to 3" Minimum Work Diameter,
Maximum Bend Angle 140 Degrees - w/Normal Tooling,
165 Degrees - w/Special Tooling,
Production Rate Up to 1500 Bends/Hour,
Variable Ram Speed Control, 2,000 PSI Operating Pressure,
Cycle Time (at 90 Degree Bend) 1.5 Seconds,
Welded Steel Bed with Integral 50 Gallon Oil Reservoir in Base,
Heavy Cast Steel C-Frame Type Construction,
Bijur Automatic Lubrication System,
20 H.P. AC Main (Pump) Drive Motor: 230/460/3/60 (currently 460),
Push Button or Foot Switch Operation,
Non-Ferrous Tubing 25,000 PSI 1-1/4" x .083",
Mild Steel Tubing Y.P. to 40,000 PSI 1-1/4" x .065",
Stainless Tubing Y.P. to 60,000 PSI 1-1/4" x .049",
Square Tubing (Mild Steel) 1" x .065",
Square Bar (Mild Steel) 9/16",
Dimensions, Approx. 80" L-R x 33" F-B x 56" H,
