Mastech pc computer RS232 interfaced digital multimeter

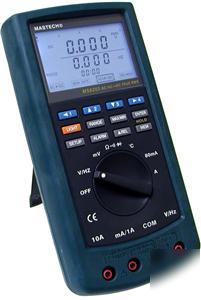

Mastech Auto/Manual Range DMM with RS232 Interface, MS8203
The Mastech MS8203 is a fully featured true RMS DMM with a PC standard RS232 interface. It can be used to measure AC/DC V/A, resistancem, frequency, temperature in both Fahrenheit & Celsius, as well as continuity and diode check. It comes with a large back-lit dual display LCD screen, which can show parameters at the same time, for example, when you are measuring AC Voltage, it not only give you the value of the voltage, but also the frequency. Other nice features include 33 memories for restoring your date and 3-modes alarm warnings and much more.
This meter comes with a RS232C port and compatible software, so you can easily hook it up with a computer to display, record and plot your measurement on your computer. It graphic software has a unique dynamic scale so even a tiny variation will be reflected on the computer.
To download user manual in PDF file, please click here.
Specifications: (Detailed specification click here)
DCV: 0/800mV/8V/80V/800V +- 0.5%;
ACV:0V/800mV/8V/80V/700V +- 1.0% (True RMS);
DCA: 80mA/1000mA/10An+-0.5%;
ACA: 80mA/1000mA/10A +-1.5% (True RMS);
Ohm: 800/8K/80K/800K/8M/40M +-1.5%;
Frequency: 10Hz - 10KHz +- 0.5%;
Temp: -50 oC - 1300 oC +- 1.0%;
Size: 6 1/2 "x 3 3/4 " x 1 1/4"
Large dual LCD back-lit display;
Auto/Manual ranging selectable;
Four different display modes;
Real time recording and exporting via RS232 interface.
Three different alarm modes:
Maximum (the alarm will go off if maximum value is measured)
Minimum (the alarm will go off if minimum value is measured);
Range (the alarm will go off if measured value is out of set-up range);
Built-in clock shows date and time;
Built-in memory records up to 33 values and corresponding time and date;
Fahrenheit/Celsius selectable;
Automatic power off after being idle for 10 minutes;
Maximum and Minimum, data hold;
Carrying case with shoulder belt
