Agilent 34970A data acquisition switch demo unit used
This unit was used for demonstration purposes and carries manufacturer warranty and is in perfect condition!!!
Please contact us if you have any questions!
Toll Free: 1-(***)-744-3014 - Phone: 1-(***) 575 1577

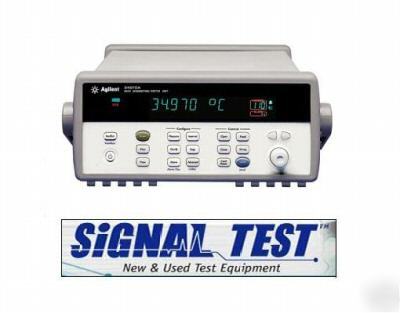

AGILENT 34970A Data Acquisition Switch
* 6 1/2-digit (22-bit) internal DMM
* Measures 11 functions without external signal conditioning
* 3-slot mainframe, offers up to 96 matrix crosspoints or 120 single-ended channels
* 50K readings of non-volatile memory holds data when power is removed
* Monitor display mode lets you keep an eye on tests in progress
* Scaling function for converting raw inputs into user-defined units
* HI/LO alarm limits on each input channel, plus 4 TTL alarm outputs
* Battery-backed real-time clock
* 8 switch and control plug-in modules
* Task-oriented, self-guiding menus
* BenchLink Data Logger software included
* Built-in GPIB and RS-232 interfaces
* (1) 34970A Data Acquisition/Switch Unit
* (1) Internal DMM Installed
* (1) Certificate of Calibration with Test Report
* (1) Quick Start Package (includes: 1 RS-232 cable, BenchLink Data Logger Software CD-ROM, 1 J-type thermocouple, 1 flat blade screwdriver)
The 34970A features 6-1/2 digits (22 bits) of resolution, 0.004% basic dcV accuracy, and ultra-low reading noise. Combine that with scan rates of up to 250 channels/sec, and you've got the speed and accuracy you need to get the job done right the first time.
Powerful flexibility to get your job done.
Whether you need to measure temperature, ac/dc volts, resistance, frequency or current - the 34970A can handle it. The internal autoranging DMM directly measures 11 different functions, eliminating the need for expensive external signal conditioning. And our unique design allows complete per-channel configurability for maximum flexibility and quick, easy set up. It's like having an independent, high-performance DMM behind each channel.
Custom configurations that grow with you.
From the simplified configuration procedures, to the self-guiding front panel interface, we put in extra time and energy to save yours. Simple things - like on-module screw-terminal connectors, built-in thermocouple reference junctions, well-organized user documentation full of examples and hints, and a standard "getting started" kit that will have you making measurements 15 minutes out of the box - all add up to increased productivity, whether you use the instrument every day or only now and then.
Free software to save you time and money.
Now you don't have to spend your valuable time writing or configuring software. Agilent BenchLink Data Logger software gives you a familiar Windows interface for test configuration and real-time data display and analysis. Even better, this full-featured data logging application is included free with every standard 34970A.
Unequaled versatility for your data acquisition applications.
In the past, you had to make a choice. On the one hand, you could choose the simple operation and low cost of a data logger. On the other hand, you had the flexibility and higher performance of a modular data acquisition system. The 34970A Data Acquisition/Switch Unit gives you the best of both worlds: a simple user interface with low per-channel cost, modular flexibility and impressive measurement performance.
