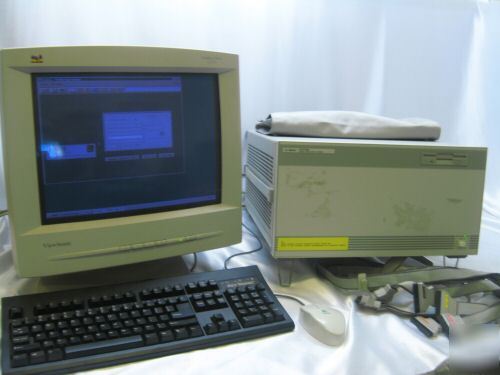

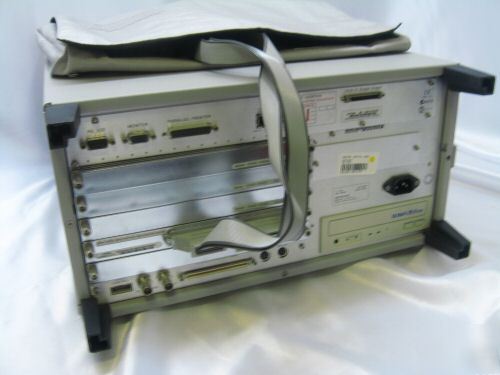

Hp agilent 16700B logic analyzer w/ 16750A board card

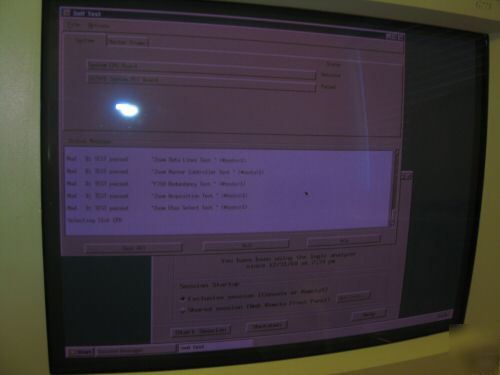

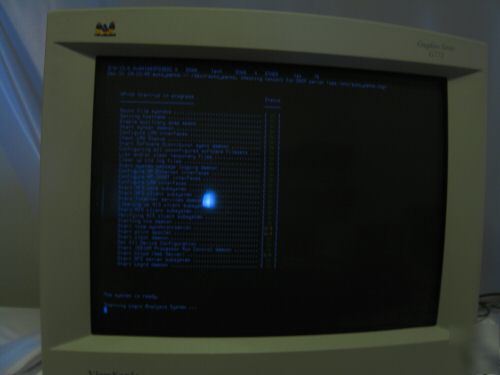

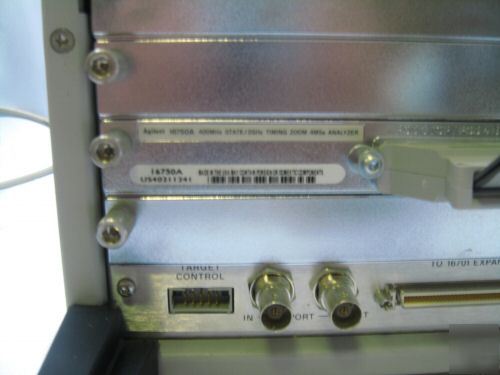

Unit had a defective HD so I replaced it. Drive is a little smaller (9.1 GB) but has software 2.90.00 installed so it is up to date. The internal self test passes just fine as well as the self test for the 16750A card which is installed. Leads on the card 750A are included as shown. CD Rom and floppy drive work fully.
* 5 measurement module slots
* 1 slot for emulation module or Multiframe module
* 10/100 BaseT LAN auto-sensing
* 128 MB system RAM, upgradeable to 256 MB with Option 003
For user manual, please view the following: http://cp.literature.agilent.com/litweb/pdf/16700-97023.pdf
* Maximum State speed 400 MHz
* 10/100 BaseT LAN auto-sensing
* 128 MB system RAM, upgradeable to 256 MB with Option 003
Questions? Just ask and I will help as best as I can. Thanks for looking!~
