Tektronix (tek) TDS784C oscilloscope, 1 ghz (*options)

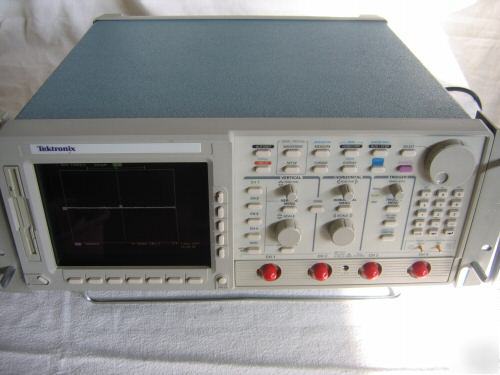

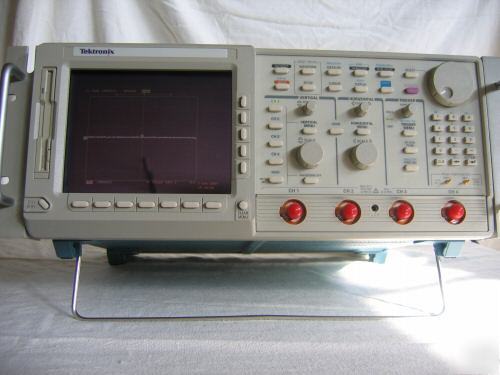

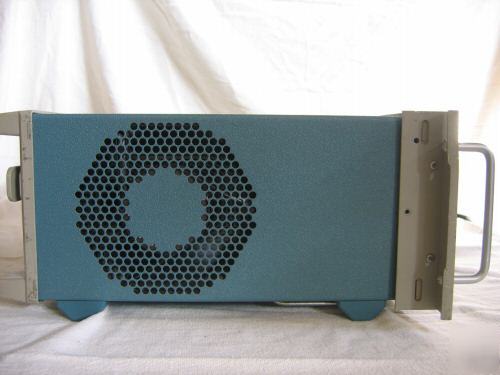

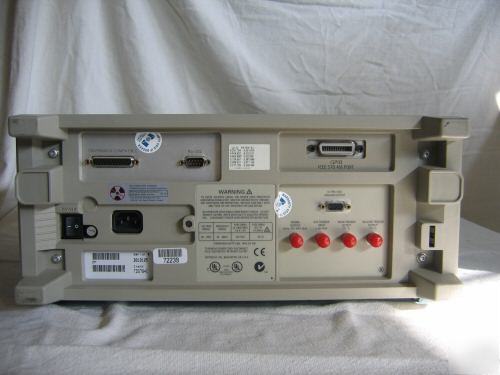

Tektronix TDS784C Oscilloscope, 1 GHz, 4 Channel, 4 GS/s w/ OPTIONS.
Description: The TDS784C provides a well-rounded combination of a graphical user interface, high-fidelity acquisition, advanced triggering and automatic measurements. Extensive user interface design help make the TDS family of products intuitive to operate. The TDS784C has a familiar front panel layout with dedicated vertical, horizontal, and trigger controls. A graphical user interface with over 200 icons helps facilitate understanding and use of the advanced features. A color monitor helps rapidly distinguish between multiple waveforms and measurements. On-line help provides a convenient built-in reference manual.
Channels can be transparently combined to achieve higher sample rates and longer record lengths. The record length can be optionally increased to 8M points, providing a high-resolution representation of the signal over a long period of time. All of the TDS products provide wide dynamic range, flat response, fast overdrive recovery, calibrated DC offset, 1 mV/div sensitivity, 1 ns peak detect, and internal calibration.
* Cosmetic Condition: Excellent
* Working Condition: Tested good. Most items have been tested, but only to the extent of our capabilities. If you would like us to perform some sort of test or diagnosis on the item, please contact us.

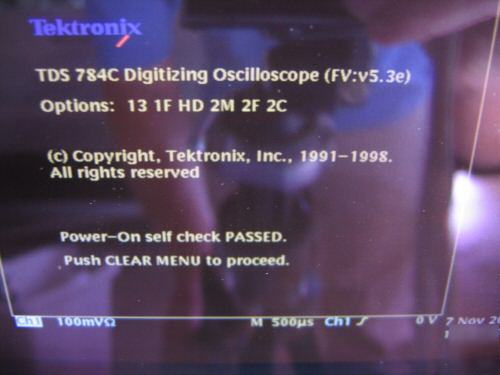

* Other Comments / Notes: Units sold with what you see. Nothing extra is included unless noted in the description. Power cords are not included in the sale. This TDS784C has the following options installed:
* 1F: 3.5†Floppy Disk Drive
* 2F: Adds Extended Waveform Math/FFT
* 2M: Memory Extended-2M/Channel
* Warranty: Rest assured that your purchase includes a 3-day DOA Guarantee. If the item is DOA, you will need to notify us within 3-days of receipt. Item(s) must be returned in the same condition as received within 7 days of receipt. (See below for further details).
We strongly recommend that you properly pack and insure the package against loss or damage. It is ultimately your responsibility that your returned product arrives at our location within the allotted return time frame in the same condition it was sent.
