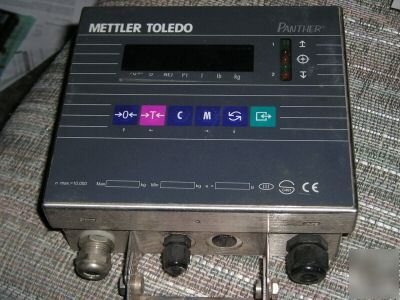

Mettler toledo panther pthn 1600 scale terminal
Designed for process industries, the PANTHER® terminal provides basic weight indication, unit switching and data output. Standard capabilities include two setpoints or four target weight storage. Built-in setpoints can be used to back up automated control systems for simple batching applications. The PANTHER terminal includes METTLER TOLEDO´s exclusive TraxDSP® vibration rejection and superior noise filtering system. Filtering can be adjusted to minimize response time and get stable weights, even when a scale has mixer or agitator mounted on it. The terminal may be integrated with a process controller through a variety of methods, including Allen-Bradley® RIO, Modbus Plus® and PROFIBUS®.
The PANTHER terminal supports both analog and DigiTOL scales.
The PANTHER terminal can store two setpoints with preact or four target weights, zero and tare values.
The terminal´s compact design means it takes up less panel or desk space.
* Housing: Stainless steel enclosure
* Degree of protection: NEMA 4x (IP65)
* Display: 7-character, 0.5 in (12.7 mm) vacuum fluorescent numeric display
* Keypad: 6 function keypad consisting of a flat membrane switch covered with a domed polyester overlay
* Interfaces: Serial, RS232, discrete, analog, PLC
* Applications: Simple weight indicating, process weighing, over/under manual checkweighing
* Suitable platforms / weigh modules: Analog, DigiTOL load cells
* Dimensions: 15.9 x 17.8 x 6.6 cm
* A/D rate (int./ext): >300 times per second
* Digital Input/Output: 1 in/3 out
* Number of attachable platforms: 1
* Resolution (approvable): 3000e OIML, 10000d NTEP
* Mounting options: Column, desk, wall
* Options: High level output, PLC

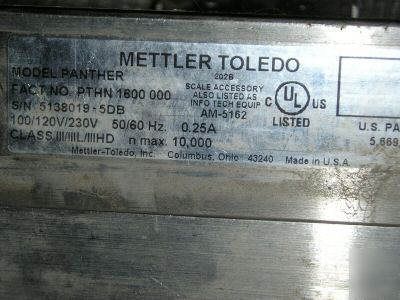

Unit was used until recently at a large manufacturig facility and removed during upgrade. In very good physical. I am unable to test unit.
