Sencore high def vsb player signal source, HDTV996
SENCORE High Definition VSB Player Signal Source, HDTV996
"The HDTV996 is designed to provide a cost effective, reliable, high quality signal source for the new digital televisions. Its function is to play a pre-recorded ATSC stream using 8-VSB modulation. It provides a compatible ATSC signal that can be used to feed off-air receivers, digital TVs, and any equipment that uses an 8-VSB input. The user can also record or import Transport Streams in to the unit. The HDTV996 is used by manufacturers and digital audio/video dealers that want to demonstrate the full capabilities of the DTV system, as well as anybody who requires a high quality DTV signal source..."

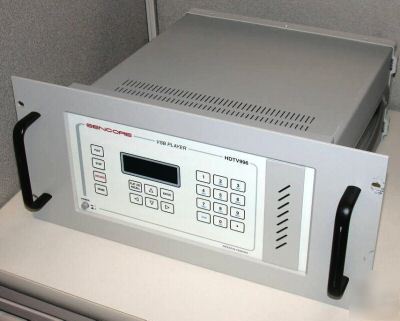

HDTV996 unit. Has rack-mount plates installed on each side, as pictured. These can alternately be removed to configure unit as a standalone device.
Power cord for main unit.
Pre-installed Microsoft Windows NT v4.00.1381.
Pre-installed Sencore HDTV996 software v4.09.
Used, working-pull from a corporate environment.

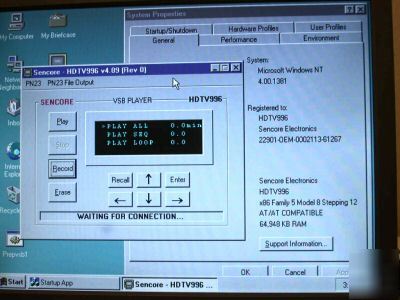

Tested and appears to function without any problems. Boots quickly and the Sencore application interface has been tested via both Windows and the integrated front control panel.
Sencore Inc. model number HDTV996.
Supports all ATSC formats including 720P and 1080I.
Multiple input path for the data stream...
- Expansion bay for CD-ROM or DVD-ROM drive (not included)
- Network card to import Transport Streams
- QPSK receiver for direct satellite recording
ATSC Transport Stream output...
- Input Source: TTL or LVDS (selectable)
- Data Bit Rate: 19.392659 MB/sec
- Output: TTL and LVDS (simultaneous)
- Output Frequency: UHF channel 14/15
- Frequency accuracy: +/- 10 kHz
- Modulation type: 8 level VSB trellis for ATSC Terrestrial
- Output impedance: 75 ohm
- Output power level: +3 to +6 dbmV
- In-band SNR: 30 dB with equalization
- Total play time: 100 minutes (summation of all programs)
- Maximum number of programs: 25
- Data compatibility: All formats in the ATSC standard
- Hard disk drive: 16GB and 20GB Ultra DMA
- Display: 4 lines by 20 characters
- Operating System: Microsoft NT v4.0
Up to 100 minutes of programming capacity on standard unit. This is configured with an extra 20GB HDD for additional storage capacity.
Complete specifications and additional information is available HERE, courtesy of the manufacturer.
