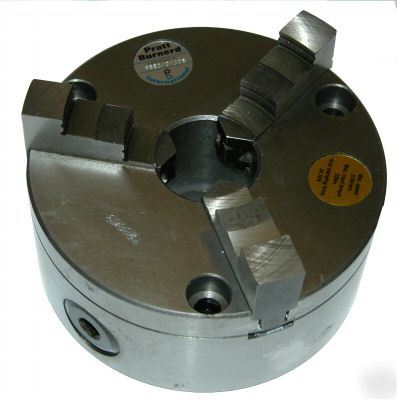

Pratt burnerd 3 jaw s/c super precision lathe chuck
The Tool Shop Pratt Burnerd Super Precision 3 Jaw Lathe Chuck 80mm Description These lathe chucks are of the backplate mounting type and have both through holes for mounting from the front and tapped holes in the rear. Made from super grade SG Iron (450 MPa tensile strength) combining many of the advantages of steel with the stability of this special cast iron. Jaw Guide Strips : Hardened & ground steel on 160-400mm chucks increase working life & maintain accuracy by substantially reducing wear. Jaws & Pinions : are high grade alloy steel, case hardened & tempered. Supplied with sets of both Internal & External Jaws, Chuck Key & Mounting Screws. Fully range of machined backplates available to suitHarrison, Colchester, Ward etc Please email to confirm stock before purchasing Specifications Chuck Diameter 80mmThrough Bore 19mmMounting Recess Diameter 63.5mmPCD of Mounting Holes 71.3mmPrice £156.62 + £7 Carriage + VAT Chuck Diameter 100mmThrough Bore 25.4mmMounting Recess Diameter 76.2mmPCD of Mounting Holes 102.4mmPrice £182.00 + £7 Carriage + VAT Chuck Diameter 125mmThrough Bore 35mmMounting Recess Diameter 95mmPCD of Mounting Holes 108mmPrice £198.62 + £7 Carriage + VAT Chuck Diameter 160mmThrough Bore 45.9mmMounting Recess Diameter 125mmPCD of Mounting Holes 140mmPrice £233.63 + £7 Carriage + VAT Chuck Diameter 200mmThrough Bore 54.8mmMounting Recess Diameter 160mmPCD of Mounting Holes 176mmPrice £298.37 + £8 Carriage + VAT Chuck Diameter 250mmThrough Bore 75.9mmMounting Recess Diameter 200mmPCD of Mounting Holes 224mmPrice £349.13 + £8 Carriage + VAT Chuck Diameter 315mmThrough Bore 102.8mmMounting Recess Diameter 260mmPCD of Mounting Holes 310mmPrice £539.00 + £14 Carriage + VAT Please email to confirm stock before purchasing Contact InformationROTAGRIP LTD16-20 Lodge RoadHockleyBirminghamB18 5PNTel 0(***) 551 1566Tel 0(***) 554 5177Fax 0(***) 523 9188email rotagrip@blueyonder.co.uk
UK :- We accept Cheques & Postal Orders (Debit Cards under £10.00 subject to 3% surcharge)
The above stated postal rate is a standard rate. If you would like it despatched differently, then please tell us.
For multiple purchases we can send up to 30kgs for £7.00 to most parts of the UK.
Carriage charges quoted are for MAINLAND UK ONLY & exclude Scottish Highlands, AB30-56, IV & KW post codes, Isles & Ireland
We despatch all items as soon as possible after receipt of funds. Please allow 5 days for cheques to clear for amounts over £10.
Unless otherwise stated, all items are brand new and unused.
All items are described to the best of our ability, using information either on the product or from the manufacturer.
Any faulty or incorrectly described goods will either be exchanged or we will give you a full refund
If you are unhappy with your purchase, contact us FIRST. Let’s sort the problem out.
If you have any other questions, or would like more details on any of our items, then contact us on 0(***) 551 1566 or email us at rotagrip@blueyonder.co.uk.
Free Tooling Catalogue available on CD Email your address for a copy now
