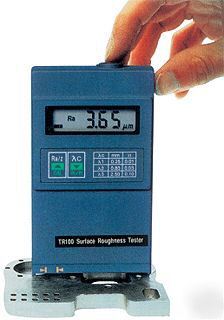

TR100, surface portable roughness tester, meter gauge
* Removable micro printer: can be installed
* Operating temperature: 41°F-104°F (5-40°C)
* Dimensions: 5.6x2.2x1.9in (141 x 56 x 48mm)
* Power: Li-Ion rechargeable battery
* Optional measuring platform: TA610
* Measures flat, outer cylinder and sloping surfaces
* Roughness parameters: Ra, Rz
* Roughness standards: ISO/DIN
* Measures grooves and recessions: greater than 3.1x1.2in (80x30mm)
* Display resolution: 0.01µm/0.4µinch
* Measuring accuracy: less than or equal to ± 15%
* Measuring range: Ra 0.05-10µm
* Maximum drive range: 0.23in (6.0mm)
* Cut-off length: 0.009/0.03/0.09in (0.25/0.8/2.5mm)
* Sensor: Piezoelectric type
* Sensor-stylus: radius 10µm±2.5µm
* Operating temperature: 32°F-104°F (0-40°C)
* Dimensions: 4.9x2.8x1.0in (125x73x26mm)
* Power: 7.2V NiCd rechargeable battery
