Used mechanical press brake, 130 ton (steelweld?)

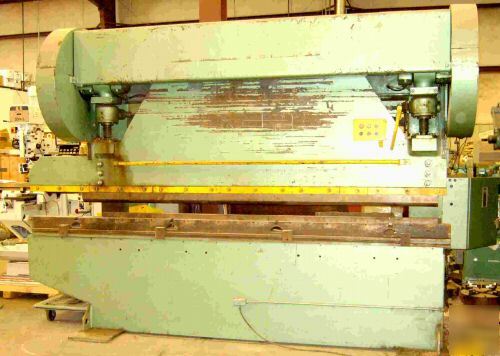

USED MECHANICAL PRESS BRAKE....Brand Name is Unknown
12' bed, 8' between housings, 24" "horn"
We don't know the BRAND NAME. We think it is a STEELWELD, but we are not sure. There is no identification on this machine of any kind. We do not know the tonnage. We do not know the exact stroke or shut height. We don't know the exact ram adjustment. Below are estimates of these values, but they are only estimates.
Year model: It looks a bit too modern for the '40s, so my GUESS is the '50s, possibly the early '60s. Once again, we are guessing, we just don't know.
We do not have any books on this machine.
Observations on this Press Brake:
* Estimated capacity is 130 tons...This is an ESTIMATE, based on physical size of machine.....WE DON'T ACTUALLY KNOW
* Overall bed length is 12', Distance between housings is 8'....Easy to measure, no guessing here...

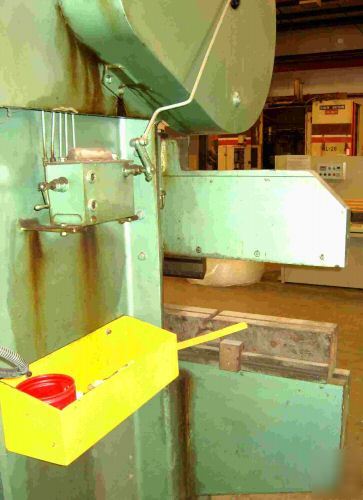

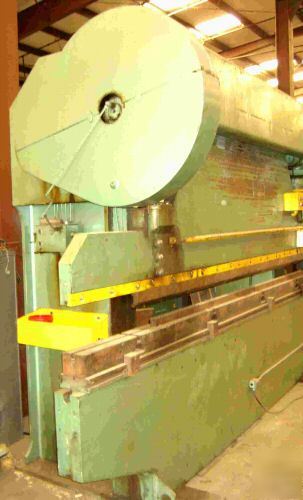

* There is a "HORN" on the left side that extends out about 24" on the left side. We think the horn is used for bending shapes that meet edge-to-edge.

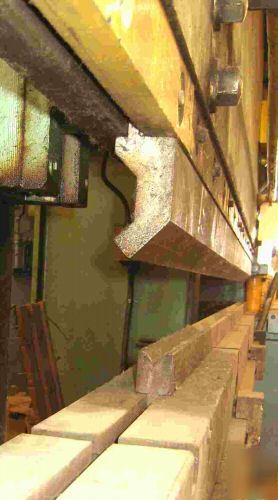

* On the main bed there is a "sub-bed" about 2 3/4" thick, on top of the sub-bed there is a riser (spacer) about 4 1/4" thick. All of this is 12' long. There is a gooseneck punch in the ram and a 90 degree die with a 1" opening on the spacer. These tools are 10' long.
* Estimated stroke is about 4". I measured from the bottom punch to the bottom of the "V" opening in the die to get this figure. The ram looks like it is all the way up so the stroke estimate is pretty close.

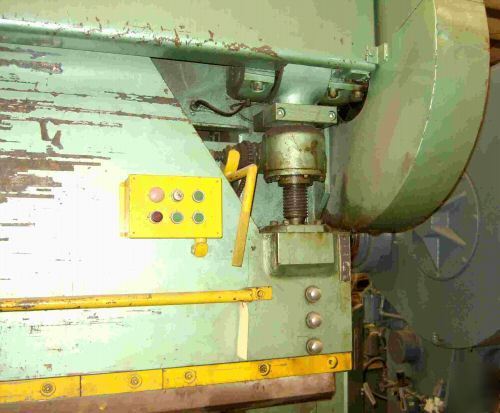

* Judging by the amount of threads on the ram adjustment, I would guess somewhere between 3" and 4"
* Shut height: If you took out the punch & die and measured from the bottom of the ram clamps to the top of the sub-bed, the distance is 13 1/4". If you took off the sub-bed the distance would be 16"
* This machine is air actuated with an electric foot pedal.
* There is NO backguage on this machine. There are NO support arms with this machine

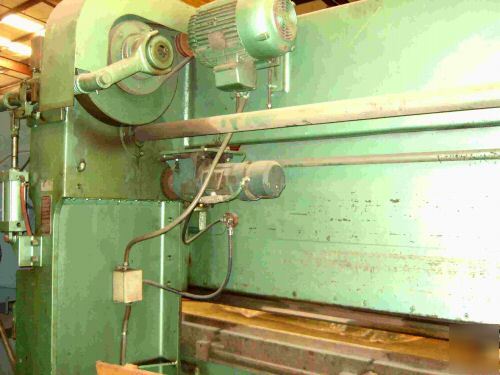

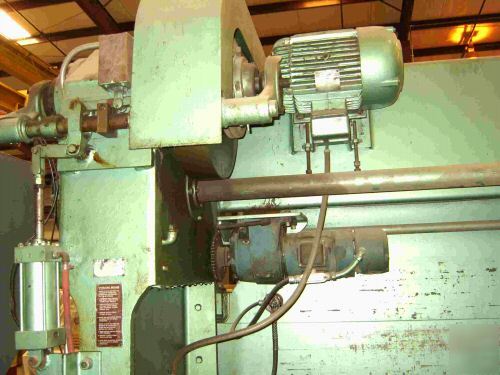

* Main Motor is 10 HP, 220/440 volt 3 phase
* Machine is currently wire for 220 volt, 3 phase operation
Cost of freight: (My estimates, you are welcome to use your own freight.)
Up to 500 miles is $ 1,300.00..........up to 1000 miles is $ 2,000.00............up to 1500 miles is $ 2,900.00........up to 2000 miles is $ 3,800.00. Just use Mapquest for mileage from my zip code 38126.
There is NO CHARGE for loading this machine.
