Ecs 5U composite rackmount case, shipping
ECS Composite 6000 Series 5U Rackmount Case
Dimensions: 24.5"W x 42"L x 15.5"T
* Riveted TSC Composite and Aluminum CEA-310 Rack with Eight Diagonally Attached Shock Mounts
* 10-32 Nut-Bar Fasteners for Equipment Panels
* Internal Draw Pull Latches
* Case-to-Case Stacking Rails and Feet with Locking Pins
Maximum Shock and Vibration Protection
6000 Series rackmount cases provide maximum shock and vibration protection for unusually fragile electronic equipment. 6000 Series cases are larger than 5000 Series cases to provide even greater sway space for absorption of impact energy. Shock and vibration attenuation is provided by eight diagonally installed shock mounts which are longer than shock mounts used in 5000 Series cases.
6000 Series rackmount cases are extremely durable, field portable enclosures with increased interior space for maximum shock mount effectiveness. High impact absorption characteristics of the compression molded FRP composite exteriors adds to enhanced shock and vibration protection for enclosed equipment.
Total Protection From The World’s Environments
Water tight rackmount cases provide protection from moisture, salt spray, sand and dust throughout the world’s climate extremes. Impervious to fuels, oils and solvents, they can also be decontaminated if exposed to chemical warfare agents.
6000 Series 19-inch rackmount cases are designed for equipment weights up to 120 pounds. 6000 Series cases and racks can be custom reinforced and supplied with additional shock mounts to accommodate and protect equipment weighing up to 200 pounds.
CEA-310-E Compliant Equipment Racks
6000 Series CEA-310-E compliant shock mounted interior racks are manufactured from precision machined aluminum extrusions. 19-inch, riveted aluminum racks provide multiple equipment mounting capabilities. Racks have equipment mounting holes in front and rear vertical members and interior vertical rails for attachment of slides and brackets. Two rackmount fastener types are available - thread locking 10-32 clip nuts or stainless steel nut bars with 10-32 tapped holes.
Shock Mounted Equipment Protection
19-inch CEA-310-E compliant racks are suspended within the center bodies of 6000 Series rackmount cases using diagonally installed elastomeric shock mounts. Shock mounts are configured for the weight and center of gravity of the installed equipment, and they provide uniform performance in all three axes. Optional shock mount configurations and spring rates can be provided to support a broad range of equipment weights and equipment centers-of-gravity.
Unrestricted Equipment Operation
ases are stackable with covers installed or removed. With covers removed, electronic equipment is accessible front and back for ease of cabling and operation. Exterior stacking features can be provided with quick release hardware to secure one case on top of another.
Quick Cover Removal and Installation
6000 Series rackmount cases have gasketed 6063 aluminum closures. They have ECS’ unique internally engaging rotary draw-pull latches. Both closure systems permit rapid removal and installation of covers while the cases are stacked.
6000 Series rackmount cases exceed the requirements of military specifications for transportable cases. Performance verification testing to MIL-STD 810 is routinely performed at ECS Composites. Originally qualified in 1962 under the severe performance requirements of MIL-C-4150.
Extremely Durable FRP Thermoset Composites
Compression molded 65% glass fiber reinforced polyester case shells provide exceptional impact resistance and rugged durability at temperatures which exceed a range of -65º F to +185º F. Optional, premium priced, polyester/fiberglass composites can be compression molded by ECS to achieve super-light rackmount case weights.
Exterior latches and handles are stainless steel and recessed for maximum protection. Anodized aluminum extrusions prevent corrosion. An automatic air pressure relief valve protects the case and enclosed electronic equipment from rapid compression and decompression during transportation.

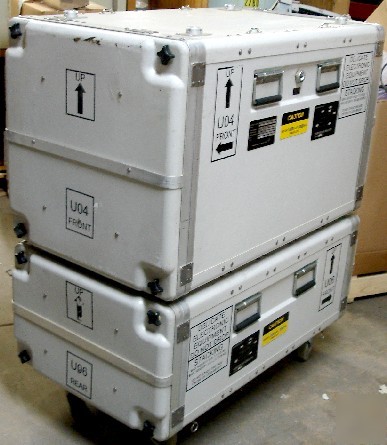

Case is used but in great condition (see pictures). Please feel free to email with any questions.
Questions? Comments? Please Email Me!
