Emerson astec VS1-L4-00 (-ce) 1500W power supply
Click on picture for a larger image.

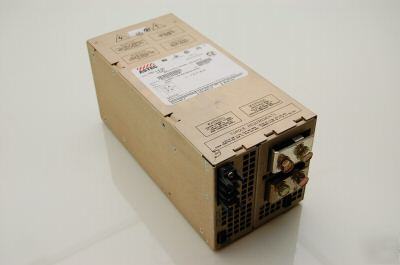

Emerson Astec VS1-L4-00 (-CE) 1500W Power Supply
The power supply has not been tested.
The power supply has the following features:
* IEC 555-2 harmonic distortion compliance
* EN61000 immunity standards
* Current share on all outputs
* Remote sense on all outputs
* Overload protection on all outputs
* Voltage adjustment on all outputs
* AC-OK-signal (logics “1†or “0â€)
* Global DC OK (logics “1†or “0â€)
* DC-OK signal and status indicator LED-on all outputs
* Global and individual module inhibits/enable
The power supply has the following specifications:
600 V / 25 A (internal)1Ø
250 V / 20 A (internal)3Ø
Input voltage 85-264 VAC 1Ø
Inrush current 40 A peak max.
EMI-filter CISPR 22, EN55022 Level B conducted/radiated
Leakage current 2 mA max. at 240 VAC
Holdover storage 20 ms min. / 40 ms typical independent of VAC
AC-OK warning time >5 ms (power fail)
Adjustment range ±10% minimum
Line/load reg 0.2% or 5 mV max.
Bandwidth limited to 20 MHz
Dynamic response 2% or 100 mV with 25% load step (any output)
Recovery time To within 1% in <300 μsec
2-5 V 122% to 134% of output voltage;
12-48 V 110% to 120%; recycle AC
Main: 105% to 120% of rated current
Auxiliaries:105% to 140%
Protected for continuous short circuit, recovery automatic
Reverse voltage protection 100% of rated output current
Each module thermally protected.
Input module: auto recovery.
Output modules; recycle AC.
Remote sense Up to 0.5 V - total drop
Single wire parallel Current share to 2% of total rated current
Switching frequency 200 KHz (900-1500 W module, 400 KHz)
DC OK -2% to -6% of nominal
Output/Output isolation >1 Megohm
More information on this driver can be found at the websites below:
Thanks for looking and let me know if you have any questions about the item, I will do my best to answer. The Emerson Astec Power Supply is sold guaranteed NON-DOA with a 7 day Right Of Return.
