Agilent / hp 1661ES 2 gs/s oscilloscope logic analyzer

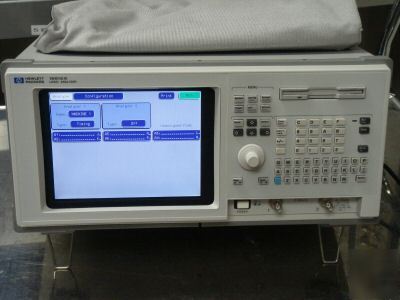

AGILENT 1661 ES LOGIC ANALYZER W/ 2GS/s OSCILLOSCOPE
The Agilent 1661ES adds an integrated oscilloscope to the Agilent 1661E product. Some of the tougher hardware problems can be found only with the digital triggering capabilities of a logic analyzer and can only be solved with the analog resolution of an oscilloscope. That's why the ES model comes with a built-in, 500 MHz, 2 GS/s oscilloscope that can be triggered by the logic analyzer. Designers can view both analog and digital signals simultaneously on the integrated display of the logic analyzer. Now you can see what the bus lines really look like at critical moments. The compact, all-in-one design saves space on a crowded lab bench.
• Solid performance: 100 MHz state speed, 500 MHz timing speed, 4 K deep memory
• Oscilloscope: 2 channel, 500 MHz, 2 GS/s, 32 K memory
• 2 GB hard drive and 1.44 MB DOS floppy drive
• VGA resolution, color, flat-panel display helps you to find information quickly
• Navigating through the well-designed user interface is made simple via your choice of either mouse or front-panel operation
• Optional PC-style keyboard supported • File formats for ASCII data and PCX/TIFF/EPS screen shots
• Centronics printer port, HP-IB and RS-232 programmability
• LAN for remote operation via X-Windows and data transfers via FTP/NFS
• 23 predefined trigger sequences with graphical representations and plain language descriptions for easy setup of powerful measurements
• Transitional timing captures data bursts separated by long time periods
