New digital coating thickness gauge,meter-paint,plastic
"DIGITAL COATING THICKNESS GAUGE (F type )"
WIDELY USED TO MEASURE THE THICKNESS OF NON-MAGNETIC MATERIAL COATING LAYERS !!!
HIGH RELIABILITY WITH PRECISION MEASUREMENT !!!
COMPACT, RUGGED & HANDY DESIGN !!!
. Meets the standard of ISO2178;
. Widely used to measure the thickness of non-magnetic materials coating layer : (Paint / Plastic / Porcelain enamel / Copper / Zinc / Aluminium / Chrome .. etc ) on magnetic materials such as iron / nickle ..etc;
. Often used to measure the thickness of plating layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper..etc;
. Exclusive Micro-computer LSI circuit and precision crystal time base for accurate and fast measurement;
. Wide measurement range and high resolution;
. Supplied calibration kit for self calibration to maintain its high accuracy;
. Use of durable ABS housing and comfort design;
. Display: 4 digits, 10mm LCD;
. Resolution: 0.1um ( 0 to 99.9um );
. Accuracy: +/-5%n or 3um ( whichever is greater);
. Power supply: 4 x 1.5AA (UM-3) battery;
. Operating condition: temp. 0 to 50C;

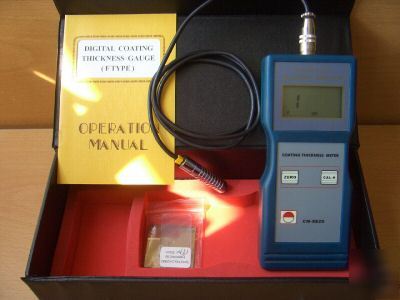

Accessories: carrying case / english user manual / test probe (F type ) / Calibration kit of foil ( 1960um ) and substrate block ( iron );
QUANTITY DISCOUNT AVAILABLE !!!
If the item damaged upon received, please send e-mail immediately with picture within 5 days. After the investigation, we decide to the replacement.
- We regret not accept Personal Check; US local Postal Order.
Don't hesitate to ask if you have any inquiry.
