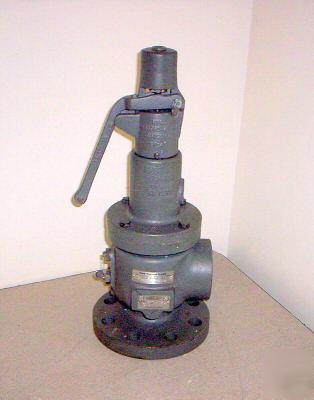

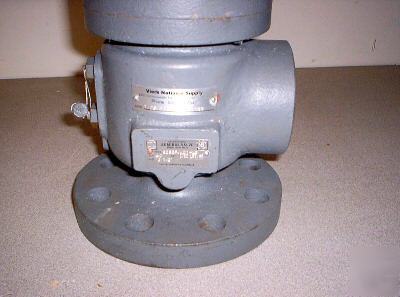

New kunkle 3753 lbs/hr boiler steam valve 6252FJJ01-ls
KUNKLE 3753 LBS/HR BOILER STEAM VALVE 6252FJJ01-LS
* ASME Section I Steam and ASME Section VIII, Air, Steam and Gas 'UV' National Board Certified, Model 6252 ASME Section IV 'HV' National Board Certified
* Cast Iron, Enclosed Spring, Stainless Steel Trim
* Heavy duty construction of high quality cast iron with SS semi-nozzle trim and disc
* Bolted bonnet design for easy maintenance
* Seats lapped to optical flatness
* Dual control rings offer easy adjustability for precision opening with minimum preopen or simmer and exact blowdown control
* Heavy duty lift lever assembly
* Every valve tested/inspected for pressure setting, blowdown, and leakage
* All adjustment are factory sealed to prevent tampering or disassembly
* Connection Pattern: Ansi B16 250# Flange X 2-1/2" Female
* Inlet Size: 2-1/2" (63.5 mm)
* Approx. 18" High X 7-1/4" Diameter
* Approx. Weight of Bottom Flange: 45 lbs
* Steam Boilers and Generators
* Pressure Reducing Stations
* Air/Gas Compressors - reciprocating or rotary
* Pressure Vessels - including tanks, receivers, intercoolers, oil/gas separators, lines
