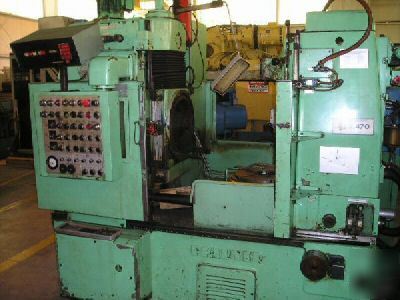

P403 pfauter uinversal gear hobbing machine #24846
P403 PFAUTER UINVERSAL GEAR HOBBING MACHINE
Universal Hobhead w/Tangential Movement
(Removed From Machine, Completely Disassembled,
Conventional, Climb, & Diagonal Hobbing Cabability
Infinitely Variable Hob Speeds
Infinitely Variable Axial, Radial, & Tangential
feeds (Axial Feed Via Recirculating Ball Screw
Automatic Work Cycles For Axial, Radial, & Tangential
Hobbing, Separately And/Or In Combination
Automatic Two Cut Cycle w/Auto Feed & Speed Change
Tailstock Column w/Hydraulically Actuated Tailstock
(Tailstock Without Center & Bushing)
Complete Coolant System w/Splash Guards, Covers, Etc.
(Machine Without Chip Conveyor)
Automatic Forced Lubrication To All Working Elements
Differential, Index, & Reversing Change Gears
Full Complement Of Electrics (Motors/Controls)
(Presently Arranged For 460/3/60Hz Operation)
Operator's Manuals, Wiring & Hydraulic Diagrams
Maximum Workpiece Diameter............. 18"/(450mm)
Maximum Pitch (Module) In Steel........ 3 DP/(8 M)
Maximum Axial Slide Travel............. 12"/(310mm)
Minimum No. Of Teeth Cut............... 6
Max./Min. Center Distance Work & Hob... 13.4/.78"
Max./Min. Center Distance Work & Hob... (340/20mm)
Work Table Diameter.................... 16"/(405mm)
Table Bore Diameter.................... 3.15"/(80mm)
Hob Arbor Diameter..................... 1.25"/(32mm)
Hob Spindle Taper...................... Morse #5
Maximum Hob Dimensions................. 6.3 x 8.6"
Maximum Hob Dimensions................. (160x220mm)
Maximum Hob Shift (Tangential)......... 6.7"/(170mm)
Hob Speeds (Infin. Variable)........... 52 To 325 RPM
Axial Feed (Infin. Variable)........... .016 To .290 IPR
Radial Feed (Infin. Variable).......... .004 To .074 IPR
Tangential Feed (Infin. Variable)...... .007 To .124 IPR
Voltage/Frequency...................... 230/460/3/60
Main Motor Rating...................... 11 kW
Total Connected Load Approx............ 24 kVA
Machine Dimensions..................... 215 x 89 x 107"
Machine Net Weight..................... 14,100 LBS
NOTES: Suitable For The Hobbing/Cutting Of
Spur/Helical Gears, Pinions, Splines, Sprockets,
Worm Gears, & Other Work Pieces Of Similar Profile
Up To 18" (450mm) Pitch Diameter. The Machine Is
In A Dismantled State, With The Universal Hob-Head
Removed & Disassembled. Loose Parts For the
Hob-Head & Drive Assembly Are Contained Within a
Wooden Box, However, It Is Presently Difficult To
Determine If The Hob-Head & Drive Assembly Is
All machines/equipment subject to prior sale.
