Hp 8663A 100KHZ-2560MHZ signal generator nice

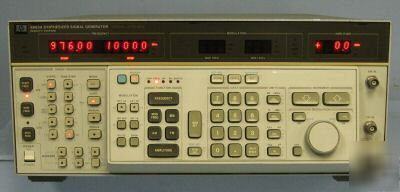

HP 8663A 100KHz-2560MHz Signal Generator NICE
The 8663A Synthesized Signal Generator is ideal for performing precise receiver sensitivity tests either manually or in automated systems via the HP-IB interface. Spectral purity is the key contribution of the HP / Agilent 8663A signal generator, making it ideal for many radar, satellite communication, and phase noise measurement applications. Typical absolute phase noise performance of this generator at a 1 kHz offset is as low as -135 dBc/Hz, depending on the band of operation. The frequency range of the 8663A is 100 kHz to 2560 MHz. It offers versatile AM, FM, phase (option 002 -not included), and pulse modulation using either internal or externally applied modulating signals. A programmable 10 Hz to 99.9 kHz modulation synthesizer provides internal rate generation for all four modulation types and can be swept in either a log or linear fashion. The signal generator also has simultaneous modulation capability.
â–ª Derives RF performance from an indirect frequency synthesis technique
â–ª 0.1 Hz from 100 kHz to 2650 MHz frequency resolution
▪ Output is available from +13 to -139.9 dBm with output level accuracy held to ± 1 dB using microprocessor correction
â–ª Versatile phase-locked AM/FM using either internal 400 Hz and 1 kHz rates or externally applied modulating signals (either DC or AC coupled)
â–ª Generates phase and pulse modulation
* EXCELLENT COSMETIC CONDITION
* Manual Available at Extra Charge
* FOR YOUR "PEACE OF MIND" and CONVENIENCE any TESTED and FUNCTIONAL TEST EQUIPMENT WE LIST CAN BE CALIBRATED for an ADDITIONAL CHARGE by AST GLOBAL'S OWN IN HOUSE CALIBRATION LAB.
* Unit has been THOROUGHLY CHECKED by our CERTIFIED LAB TECHNICIAN and is FULLY FUNCTIONAL.
* VERY GOOD COSMETIC AND ELECTRONICAL CONDITION.
* This Unit Comes with a 5 Day Right of Return.
* Power cords, accessories, probes, manuals, software, etc. are not included unless specifically stated.
If after reading the entire text, the item description, and clicking on our links and your question still is not answered, please use the Ask Seller A Question link above. Using our regular email address will cause delays in answering your question.
* ACCESSORIES: Power cords, accessories, probes, manuals, software, etc. are NOT included unless specifically stated.
Money orders, cashier checks, bank drafts
Wire transfers (please add a $15.00 banking fee)
Postal international money orders (please add a $7.50 banking fee)
Wire transfers (please add a $15.00 banking fee)
Postal international money orders (please add a $7.50 banking fee)
Wire transfers (please add a $15.00 banking fee)
RETURNS, EXCHANGES AND WARRANTY:
Please feel free to call us toll free (within Continental US) at 1-(***)-216-7159 or (outside Continental US) at 1-(***)-337-6674. Our regular business hours are Monday through Friday, 8:00 a.m. to 5:00 p.m. EST.
