Metallurgical metallographic microscope + usb camera
Superior optics! Unbeatable low price! Five-year warranty! Huge selection - more than 2,000 listings!
Check this box if search in titles & descriptions
Brand Name: AmScope Model No: ME300T-M Retail Value: $3,800
* EscrowUnlt verified seller
* call our toll free (***) 950-2888 or (***) 393-9488, 8am-6pm,
Click on Pictures for Larger View
This microscope is manufactured under the strict guidelines
established under ISO 9001: 2000 Standards.
Certificate number: 3302/200213192.
Click the button below to bookmark this item (IE only. Firefox user press "Ctrl+D").
Find it later under "Favorites" menu in your browser.

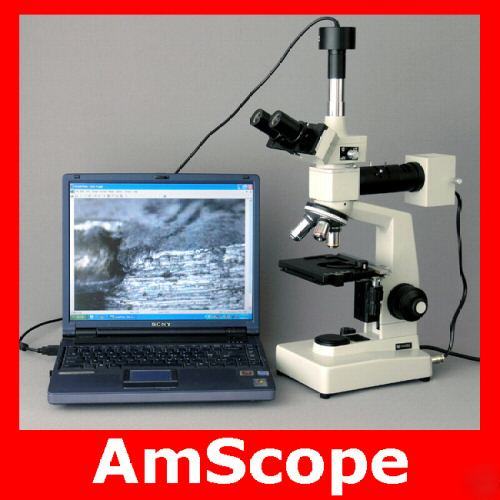

* A professional metallurgical – metallographic microscope with color digital camera!
* Clear images with 1.3 Mega (1280x1024) pixel resolution
* User-friendly software included for editing microscope images, recording videos, capturing still images, emailing images or saving them as BMP, TIFF, JPG, PICT, PTL or other file!
* Compatible with Windows 2000/XP/Vista
* Same field of view images on your PC screen as those seen through eyepieces
* 50 Watt EPI-illumination reflected light microscopy system
* Photo/video capability with 23mm universal/standard photo port
* Fully coated optical system with high resolution
* 30° inclined 360° rotatable sliding trinocular head
* Six levels of magnification, 40X, 64X,100X, 160X, 400X & 640X
* Three DIN standard Plan objectives included
* Two sets of eyepiece included
* Intensity-variable halogen EPI-illumination
* Four EPI-illumination filters included
* Large mechanical stage with stain resistant finish
* Low position stage traveling controls
* Full optical glass elements
* All metal mechanical parts
* Coaxial coarse and fine focusing
* Dual side focusing controls
* Focusing tension control mechanism
* 30° inclined 360° rotatable trinocular head
* Adjustable interpupillary distance
* Adjustable diopters on both eye tubes
* Solid metal frame construction with stain resistant enamel finish
* Spare bulb, fuse, bottle of immersion oil, and dust cover included
* Manufactured under ISO 9001 quality control standards
* Excellent five (5) year factory warranty
* Lowest price guaranteed or the difference back!
* Satisfaction guaranteed or your money back!
* Focusing Range: 1-9/16" (40mm)
* Interpupillary Adjustment Range: 2-3/16" - 3-0" (55 - 75mm)
* Mechanical Tube Length: 6-5/16" (160mm)
* Head: 30° inclined trinocular
* Camera/Video Trinocular Port: 23mm universal/standard photo tube
* Eyepieces: WF10X (18mm field of view), P16X (11mm)
* Objectives: PL 4X (0.1 NA), 10X (0.25 NA), 40X (spring, 0.65 NA)
* Stage Dimensions: 5-1/8"x 4-13/16" (130x122mm)
* Stage Traveling Range: 1-3/16"x2-3/4" (30x70mm)
* Vernier Division: 0.004" (0.1mm)
* Illumination: 6V/50W halogen bulb
* Power Supply: 110V (Adapter for 220V version available), CE certified
* One Trinocular Metallurgical Microscope Body with EPI Illumination
* One Pair of Widefield 10X Eyepieces
* One Pair of P16X Eyepieces
* Three Filters: Yellow, Blue & Green
* One 1.3MP USB2.0 Digital Camera with Software and Driver
* Step-by-Step User's Instructions
* Our microscopes and accessories are manufactured under the strict guidelines established by ISO 9001: 2000 Standards with Certificate No: 3302/200213192. This item comes with 5-year warranty. We carry all of the full-coverage warranty services
Accessories listed below are compatible with above microscope. They can boost the microscope with the extra features mentioned below.
Click on the pictures of the items you are interested in for detail and purchase.
Check this box if search in titles & descriptions
Q: How do I select a microscope? What’s the correct way to use a microscope?
A: Your application is the most important factor in choosing a microscope. What you need to see and what you want to do with that image will determine what kind of microscope you need. There are two basic types of optical microscopes: compound and stereo. For more information, check our Purchase Guide
