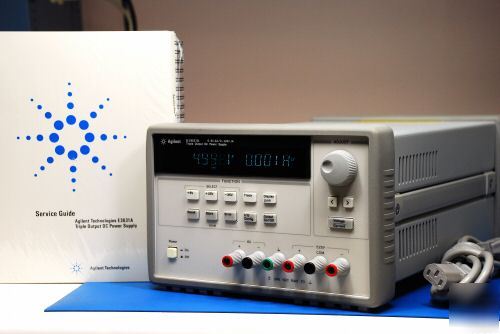

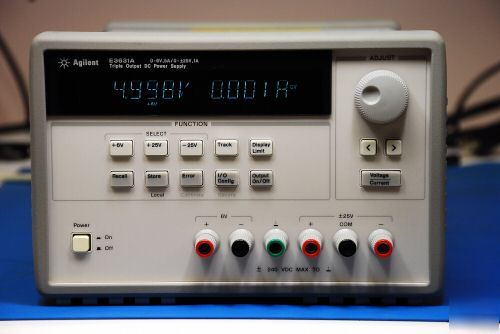

Agilent E3631A programmable dc power supply
Reliable Power, Repeatable Results
The E3631A programmable DC power supply gives you the performance of the system power supplies at a decent price. E3631A provides clean power, excellent regulation and a fast transient response with built-in GPIB and RS-232 interfaces. The E3631A is designed to meet the requirements of the most demanding applications in R&D design verifications, production testing, and QA verifications with traditional quality and reliability which you can count on.
All programming is done in easy-to-use SCPI (Standard Commands for Programmable Instruments). The user’s guide describes the process for the first-time programmers.
* Output 1: 0 to 6 V, 0 to 5 A
* Output 2: 0 to +25 V, 0 to 1 A
* Output 3: 0 to -25 V, 0 to 1 A
Programming Accuracy at 25°C ±5°C
* Voltage: 0.05% + 20 mV, 0.05% + 20 mV, 0.1% + 5 mV
* + Current: 0.15% + 4 mA, 0.15% + 4 mA, 0.2% + 10 mA
Ripple & Noise (20 Hz to 20 MHz)
* Normal Mode Voltage: <350 µVrms/ 2 mV p-p, <350 µV rms/2 mV p-p, <350 µV rms/2 mV p-p
* Normal-mode current: <500 µA rms, <500 µA rms, <2 mA rms
* Common-mode current: <1.5 µA rms, <1.5 µA rms, <1.5 µA rms
Readback Accuracy at 25°C ±5°C
* Voltage: 0.05% + 10 mV, 0.05% + 10 mV, 0.1% + 5 mV
* Current: 0.15% + 4 mA, 0.15% + 4 mA, 0.2% + 10 mA
Input AC: 115 VAC +/- 11V operation, 47 to 63 Hz
Clean and stable power with programmability at an affordable price.
