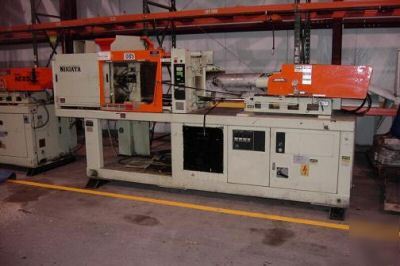

55 ton, 3 oz. niigata injection molding machine '93
55 Ton, 2.2 Oz. Niigata Injection Molding Machine
Platen Size ........................ 18.11" x 18.11"
Distance Between Tie Bars .......... 12.20" x 12.20"
Clamp Stroke ................................ 9.84"
Minimum Mold Height .......................... 6.30"
Maximum Mold Height ......................... 12.99"
Ejector Stroke ............................... 2.76"
Machine Dimensions ............. 155"L x 41"W x 65"H
Machine Weight ........................... 6,600 lbs
RJG Outlet for Process Control
