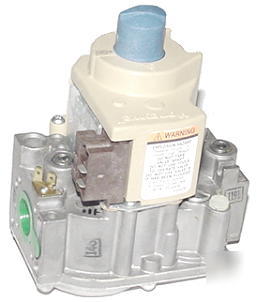

Honeywell ignition gas valve VR8305M2102 (30914)
Dual Direct Ignition Gas Value
24 Vac Dual Direct Ignition Gas Valve with 1/2 in. x 1/2 in. inlet/outlet, standard opening and 3.5 in. wc pressure regulator setting
Combination gas control for use with hot surface/direct spark systems in 24 Vac, gas-fired appliances, with capacities from 30 to 415 cfh.
• Controls include manual valve, two automatic operators, and pressure regulator.
• Use with S89C,E,F and S87 series 5 and later.
• Provide two automatic valves.
• Solenoid-operated first automatic valve opens on thermostat call for heat; closes when call for heat ends.
• Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted.
• Meet codes requiring dual safety shut-off.
• All adjustments, wiring connections and pilot outlet are accessible from top of control.
• Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure.
• ON-OFF lighting sequence.
Description 24 Vac Dual Direct Ignition Gas Valve with 1/2 in. x 1/2 in. inlet/outlet, standard opening and 3.5 in. wc pressure regulator setting
Ignition Type Direct Ignition
Inlet/Outlet Size (in.) 1/2 in. x 1/2 in.
Body Pattern Straight-through
Opening Characteristics (standard, step) Standard
Capacity @ 1 in. p.d. 240,000 BTU/hr; 30,000 BTU/hr minimum
Pressure Ratings (psi) 1/2 psi
