New very high speed sample hold amplifier n/r qty 90
Very High Speed Sample Hold Amplifier
Acquisition Time to 0.01%: 250 ns Typical
Fully Specified and Tested Hold Mode Distortion
Total Harmonic Distortion: –85 dB
Aperture Jitter: 50 ps Maximum
8-Pin Mini Cerdip and SOIC Packages
The AD783 is a high speed, monolithic sample-and-hold
amplifier (SHA). The AD783 offers a typical acquisition time
of 250 ns to 0.01%. The AD783 is specified and tested for hold
mode total harmonic distortion with input frequencies up to
100 kHz. The AD783 is configured as a unity gain amplifier
and uses a patented self-correcting architecture that minimizes
hold mode errors and ensures accuracy over temperature. The
AD783 is self-contained and requires no external components
The AD783 retains the held value with a droop rate of 0.02
s. Excellent linearity and hold mode dc and dynamic performance
make the AD783 ideal for high speed 12- and 14-bit
The AD783 is manufactured on Analog Devices’ ABCMOS
process which merges high performance, low noise bipolar
circuitry with low power CMOS to provide an accurate, high
The J grade device is specified for operation from 0
°C to +85°C. The J and A grades are
available in 8-pin cerdip and SOIC packages. The military
temperature range version is specified for operation from –55
°C and is available in an 8-pin cerdip package. For
Analog Devices Military Products Databook or
http://pdf1.alldatasheet.com/datasheet-pdf/view/48319/AD/AD783JR.html

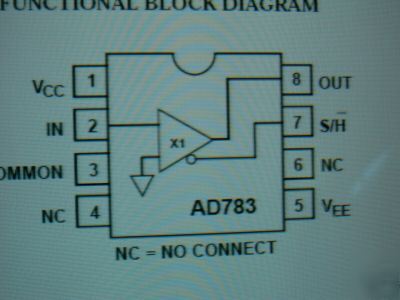

Please take a look at the actual picture.
We are not liable for incidental or consequential damages or claims.
We DO NOT accept personal or business checks.
Questions 1(***)916-4972, Mikhail (russian, english)
