Airsep oxygen generator model as-450, 450 scfh @ 60PSI

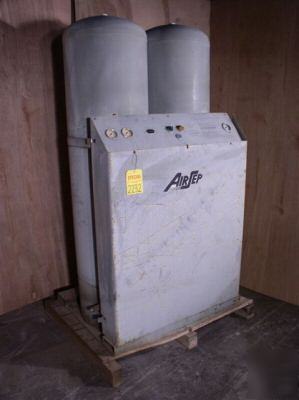

1 Used AIRSEP Oxygen Generator; Model #: AS-450; S/N: AS-450-1210
Air Demand………….………………… AVG 81.7 SCFM @ 90 PSIG
Oxygen Product……….…………….. 450 SCFH @ 60 PSIG @ 95% Purity
Control Panel……………………………120V/1PH/60HZ
Overall Dimensions: †F-B x †L-R x †High
F.O.B…………………….Casa Grande, Arizona
Standard Product Flow: 450 SCF/hr1 (11.83 Nm3/hr2)
Standard Product Pressure: 1–45 psig (5–310 kPa)
Product Dew Point: -100°F (-73°C)
Locate the oxygen generator in a well-ventilated area that
is protected from weather elements and remains between
Average Flow Rate: 81.7 SCFM1 (2.15 Nm3/min2) Air
Pressure: 90 psig (620 kPa) minimum
Temperature: 122°F (50°C) maximum
120 V ~ ±10%, 50/60 Hz, Single Phase, 1.5 A
220 V ~ ±10%, 50/60 Hz, Single Phase, 0.75 A
Typical Power Consumption (at 90% purity): 180 W
Dimensions (W x D x H): 42 x 34 x 79 in. (107 x 86 x 201 cm)
Compressed Air Inlet: 3/4†JIC
Product Gas Outlet: 3/8†NPT/C size oxygen adapter
Certifications and Approvals: NRTL certified compliance to
Warranty: 1 Year Parts and Factory Labor*
*An unprotected or inadequately ventilated environment, improper feed air quality,
or improper control power may cause damage to the oxygen generator not
AirSep Corporation continually improves its products and reserves the right to
change specifications or design without notice.
1 SCF (Standard cubic foot) gas measured at 1 atmosphere and 70°F
2 Nm3 (Normal cubic meter) gas measured at 1 atmosphere and 0°C
AirSep AS-450 Oxygen Generator
Note: A standard AS-450 delivers 450 SCF/hr1 (11.83 Nm3/hr2) of 90%
minimum purity oxygen at a pressure of 45 psig (310 kPa). If your
application requires higher or lower flow and/or pressure, please
